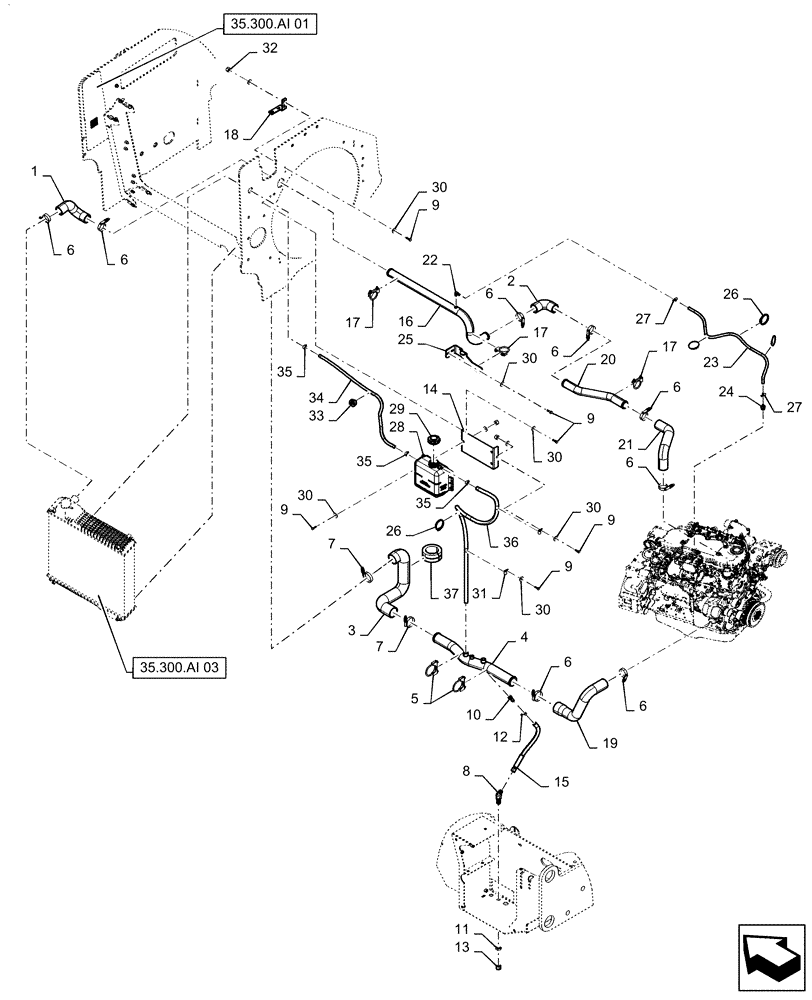

Запчасти Case 521F (10.400.AD[01]) - ENGINE COOLING SYSTEM HOSE INSTALLATION (10) - ENGINE

1

47570414

RADIATOR HOSE

Elbow, Radiator Top

1шт.

2

381232A1

HOSE,44.50 mm ID x 87.00 mm, SAE J20R4 Class D1

Elbow, Thermostat to Radiator Top

1шт.

3

47570415

RADIATOR HOSE

Radiator Bottom

1шт.

4

84338554

RIGID TUBE

Coolant Bottom, Plated, W/ Bosses

1шт.

5

393632A1

CLAMP

U-bolt, 2.25"

1шт.

6

254026A1

HOSE CLAMP,44.45mm - 66.67mm

7шт.

7

L115548

CLAMP,57.15mm - 79.38mm

3шт.

8

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

11шт.

10

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

11

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

12

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

13

218-755

CAP,37 Degree, 3/4"-16

1шт.

14

84338527

PLATE

Coolant Overflow Mounting

1шт.

15

47457805

HYDRAULIC HOSE

Coolant Remote Drain

1шт.

16

47474359

TUBE

Radiator, Plated, W/ Fitting Boss

1шт.

17

382189A1

CLAMP

U-bolt, 2"

3шт.

18

47570410

BRACKET

Angle, Tube Mount

1шт.

19

86991195

HOSE,48.00 mm ID, 57.20 mm ID x 254.00 mm, SAE J20R4 Class D1

Ebow, Radiator Bottom to Engine

1шт.

20

47570430

TUBE

Radiator Top, Plated

1шт.

21

47474349

RADIATOR HOSE

Thermostat

1шт.

22

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

23

31-1190

HOSE,6.4mm ID x 965mm L, SAE 30R2

Breather

1шт.

24

87635840

VALVE

Breather Check Valve

1шт.

25

47692656

BRACKET

Coolant Tube Mounting, Rear

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

28

A184395

RESERVOIR

Coolant Recovery

1шт.

29

1547924C1

CAP

Coolant Recovery Bottle

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

17шт.

31

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

33

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

34

47570408

HOSE

Coolant Recovery, Radiator to Bottle

1шт.

35

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

36

87619895

HOSE,7.90mm ID x 390.00mm L

Coolant Bottle Overflow

1шт.

37

8500167

SEAL

Lower Radiator Tube

1шт.
