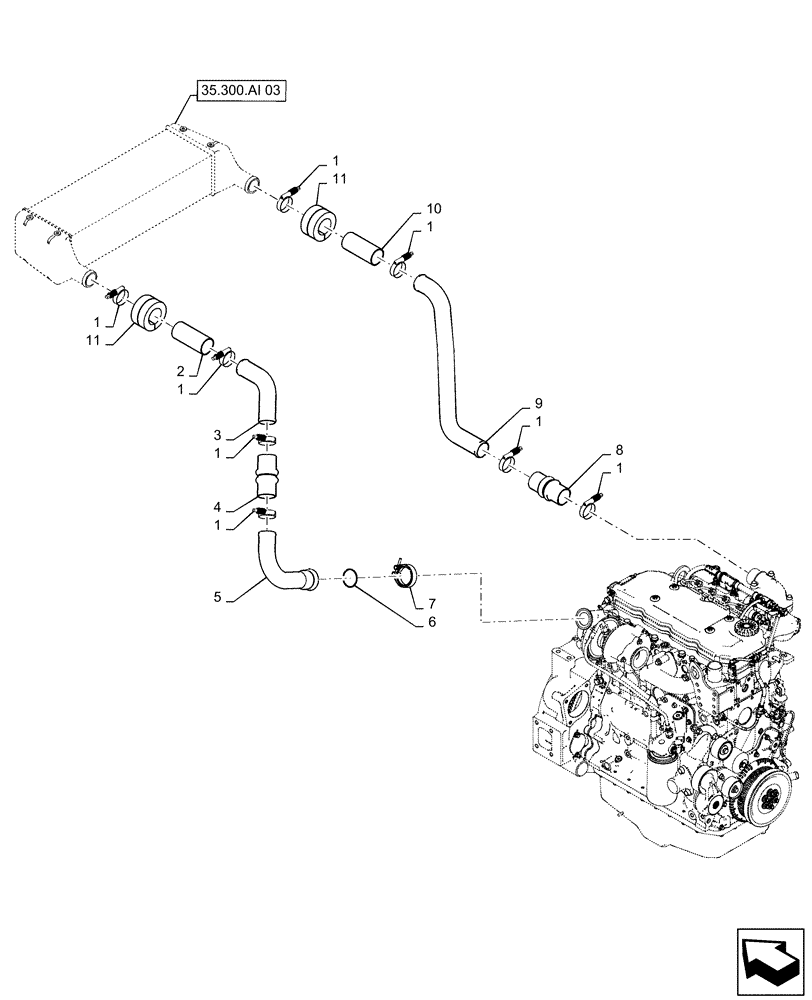

Запчасти Case 521F (10.310.AD[01]) - CHARGE AIR COOLER HOSES AND TUBES (10) - ENGINE

1

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

2

87340023

HOSE,50.80mm ID x 127mm L

Cooler Inlet

1шт.

3

47717131

TUBE

Rigid, Elbow to Cooler Inlet

1шт.

4

87340027

HOSE,50.80mm ID x 127mm L

Charge Air

1шт.

5

47717132

TUBE

Rigid, Elbow to Turbo Outlet

1шт.

6

84364093

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

1шт.

7

84365315

CLAMP,68mm

1шт.

8

87617020

HOSE ASSY.

Engine Intake

1шт.

9

47739889

TUBE

Rigid, Cooler Outlet to Engine Intake

1шт.

10

87340020

HOSE,50.80mm ID x 127mm L

Cooler Outlet

1шт.

11

402614A1

SEAL

Cooler Inlet/ Outlet

1шт.
