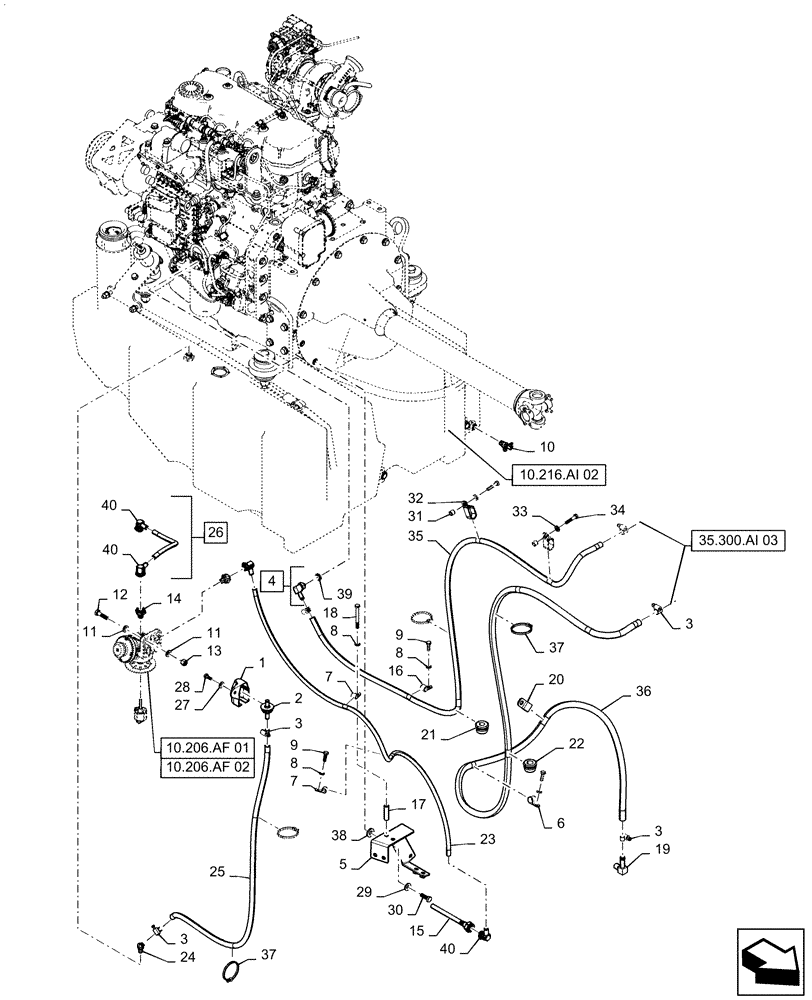

Запчасти Case 521F (10.216.BA[01]) - FUEL LINE INSTALLATION (10) - ENGINE

1

186814A1

CAP

Fuel Tank Vent Cover

1шт.

2

T103750

BREATHER

Fuel Tank Breather

1шт.

3

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

4

87400460

90 ELBOW

NG-8, 3/8" Barb, Incl 39

1шт.

5

47572777

BRACKET

Fuel Line

1шт.

6

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

10

217-92

COCK

Tank Drain

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

Fuel Line, W/ Sealing Washer

2шт.

15

8602537

TUBE,12mm OD x 171mm L

Fuel Tank Draw

1шт.

16

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

17

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1шт.

18

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

19

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

20

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

22

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

23

47476680

TUBE

Fuel Tank to Pre-filter, Incl 40

1шт.

24

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

25

87450701

HOSE

Breather

1шт.

26

47476679

FUEL TUBE

Pre-filter to Engine, Incl 40

1шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

29

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

30

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

31

87722494

SPACER,8.5mm ID x 14mm OD x 12mm L

2шт.

32

L101181

CLAMP,0.75" D Clamping pipes x 2

Double

2шт.

33

892-11010

LOCK WASHER,M10

2шт.

34

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

35

31-3082

HOSE,0.38" ID x 8.00"

1шт.

36

390650A1

HOSE, BULK

Tank Return

1шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

38

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

39

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

40

87445405

O-RING

Special, NG-12 Fitting

8шт.
