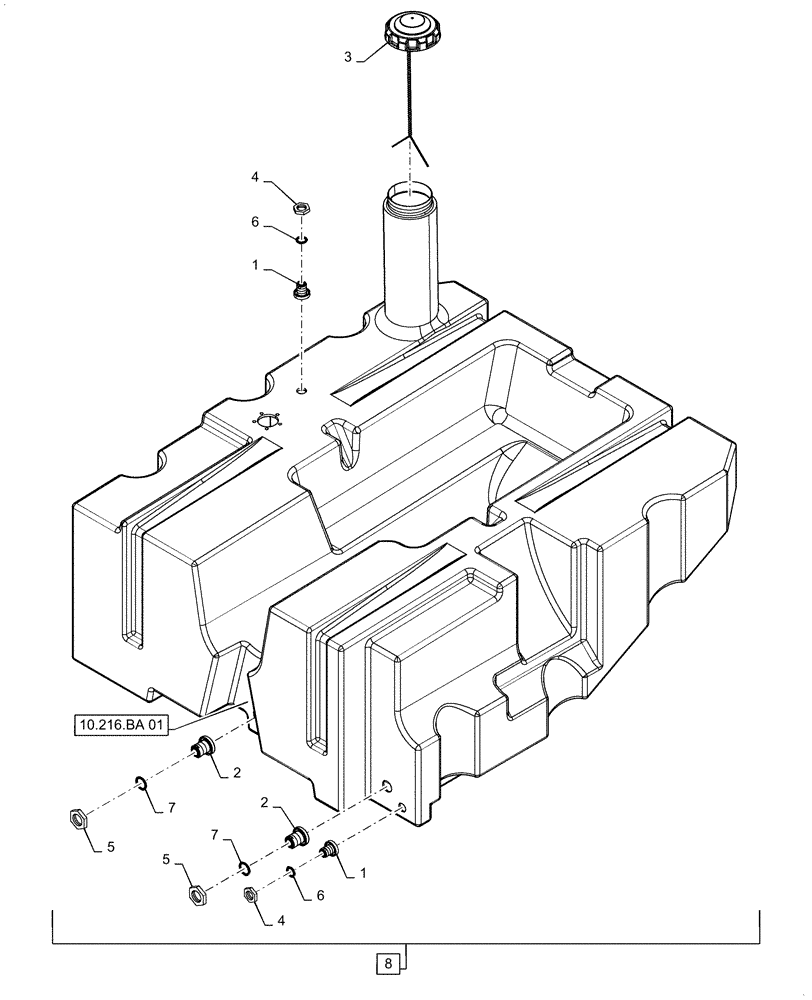

Запчасти Case 521F (10.216.AI[02]) - FUEL TANK COMPONENTS (10) - ENGINE

1

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Tank Drain and Vent

2шт.

2

87707148

FITTING

3/8" - 18 NPT Internal, 1" - 14 LH Thread External

2шт.

3

8604443

FILLER CAP

Fuel, W/ Gasket

1шт.

4

1251791C1

JAM NUT,3/4" - 16 LH Thread

2шт.

5

282709A1

NUT

1" - 14 LH Thread

2шт.

6

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

7

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

8

87400409

FUEL TANK

50 Gallon, Incl 1 - 7

1шт.
