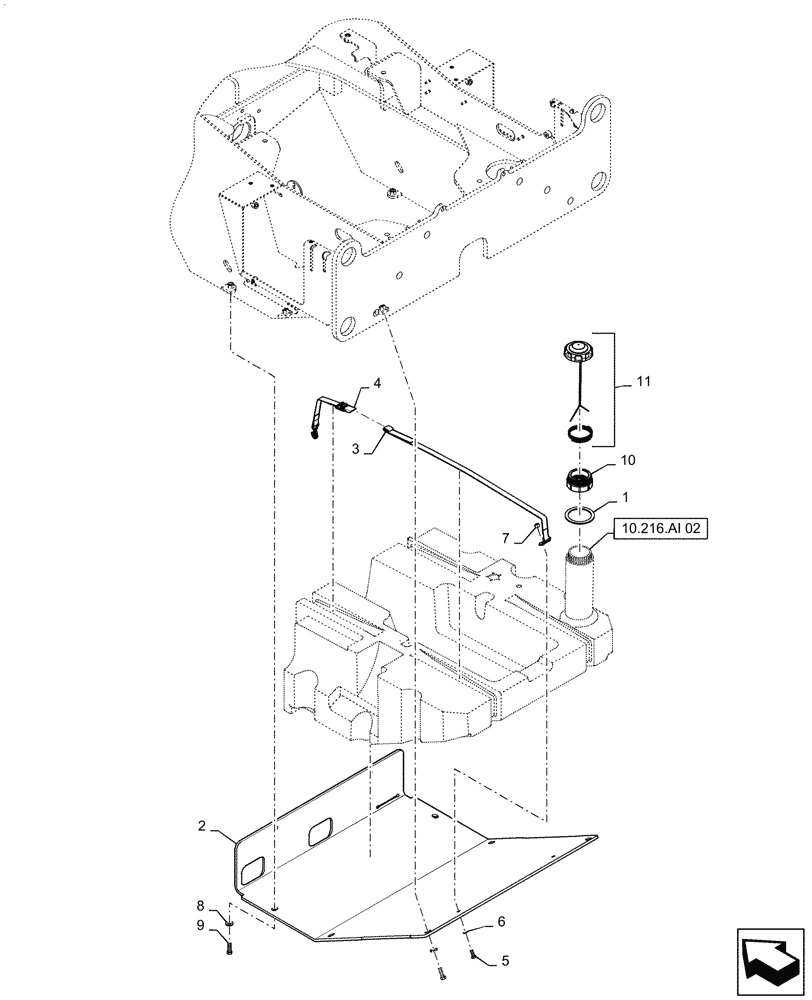

Запчасти Case 521F (10.216.AI[01]) - FUEL TANK INSTALLATION (10) - ENGINE

1

47747008

GASKET

Adaptor

1шт.

2

47601535

PLATE

Fuel Tank

1шт.

3

366904A1

SECURING STRAP

Long

2шт.

4

366905A1

SECURING STRAP

Short

2шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

10

84130479

ADAPTER

Fuel Cap

1шт.

11

8604443

FILLER CAP

Cap W/ Gasket

1шт.
