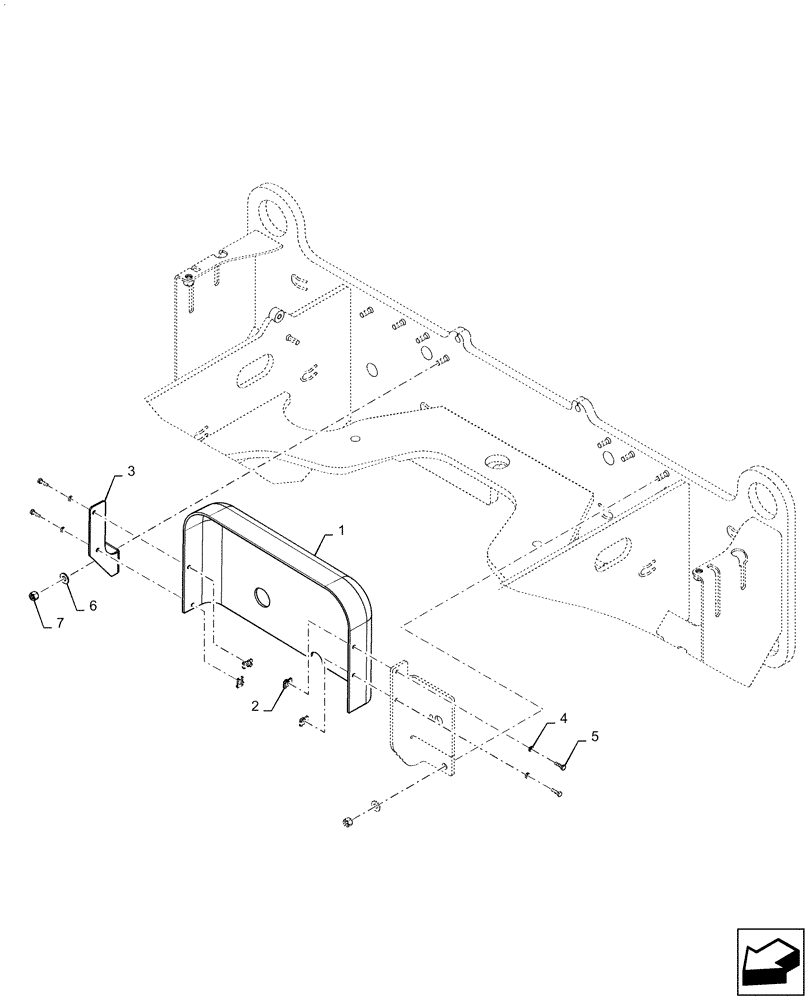

Запчасти Case 521F (10.102.AA[01]) - VAR - 782439 - ENGINE DRIVE BELT COVER, NO A/C (10) - ENGINE

1

87408421

GUARD

Engine Drive Belt, No A/C

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

87669778

BRACKET

Belt Guard Mounting, RH

1шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
