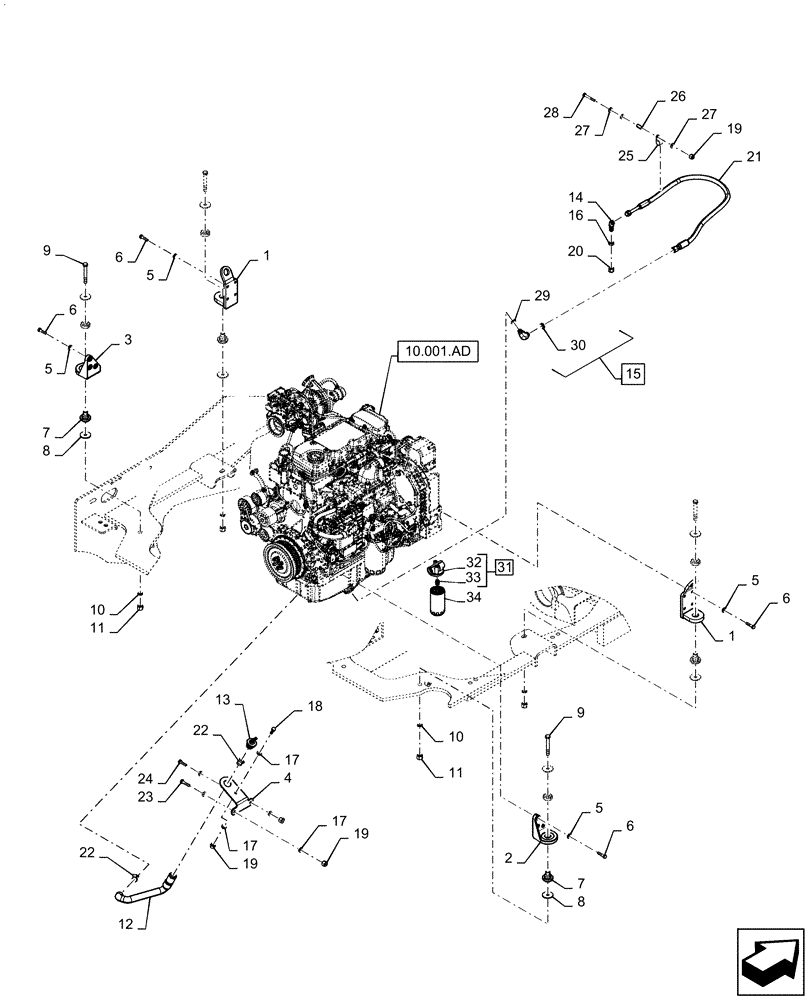

Запчасти Case 521F (10.001.AK[01]) - ENGINE INSTALLATION (10) - ENGINE

1

87693569

BRACKET

Mount, Flywheel Housing

2шт.

2

47386946

ENGINE MOUNT

Right

1шт.

3

8602304

ENGINE MOUNT

Left

1шт.

4

47570946

BRACKET

Oil Fill Tube

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

6

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

7

47439430

ISOLATOR

Engine Mount

4шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.

9

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

832-10416

NUT,M16 x 2, Cl 8

4шт.

12

87693570

TUBE,31mm Upper ID x 22mm ID Lower x 231mm L

Engine Oil Fill

1шт.

13

429797A1

CAP

Oil Fill

1шт.

14

218-716

ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

15

87426452

FITTING

90 Deg, Incl 29, 30

1шт.

16

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

218-756

CAP,37 Degree, 7/8"-14

1шт.

21

84352761

FLEXIBLE HOSE

Remote Oil Drain

1шт.

22

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

23

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

24

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

25

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

26

L126936

SPACER

Tube Mount

1шт.

27

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

28

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

29

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

31

84530850

HOUSING

Engine Oil Filter, Incl 32, 33

1шт.

32

NSS

NOT SOLD SEPARAT

Engine Oil Filter Housing W/O Adapter, Incl in 31

1шт.

33

4893391

ADAPTER,M24 x 2 x M27 x 2

Incl in 31

1шт.

34

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

Screw On

1шт.
