Запчасти Case 521F (05.100.03[02]) - CAPACITIES (05) - SERVICE & MAINTENANCE

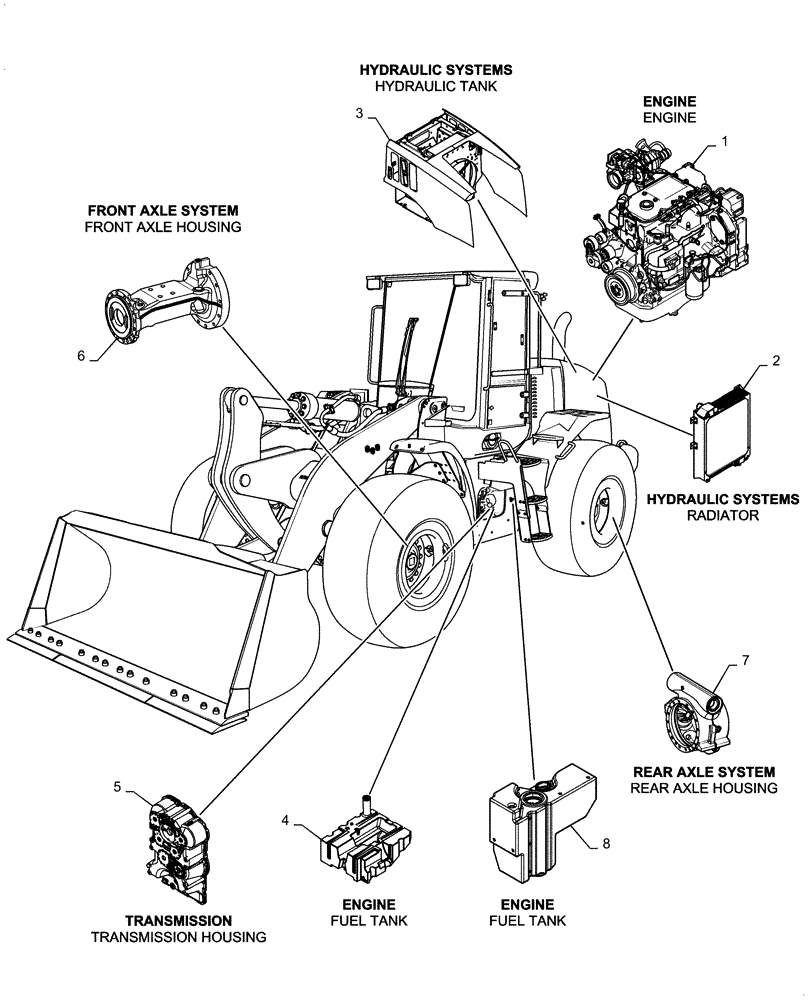

Схема запчастей Case 521F - (05.100.03[02]) - CAPACITIES (05) - SERVICE & MAINTENANCE
8
2
6
1
4
5
7
3

Артикул

Название

Примечание

Количество

1

Engine Oil W/ Filter Change - 10.9 L / 11.5 Qt, SAE10W40 CJ-4 Diesel

1шт.

1

Engine Oil Total Capacity - 11.8 L / 12.5 Qt, SAE10W40 CJ-4 Diesel

1шт.

2

Cooling System - 23 L / 24.3 Qt

1шт.

3

Hydraulic System - Reservoir Capacity - 56.8L / 15 Gal

1шт.

3

Hydraulic System - Total System Capacity -90.1 L / 23.8 Gal

1шт.

4

Fuel System - 189 L / 49.9 Gal, Biodiesel Blend Grade B2

1шт.

5

Transmission - Service Capacity W/ Filter Change - 18.9 L / 20 Qt, Standard Multi G Hydraiulic Oil

1шт.

6

Axle, Standard Front - 22 L / 23.2 Qt, #2 Moly Disulfide

1шт.

6

Axle, Optional Front - 22 L / 23.2 Qt, #2 Moly Disulfide

1шт.

7

Axle, Standard Rear - 22 l / 23.2 Qt, #2 Moly Disulfide

1шт.

7

Axle, Optional Rear - 22 L / 23.2 Qt, #2 Moly Disulfide

1шт.

8

DEF/AdBlue® - 26.7 L / 28.2 Qt, Diesel Exhaust Fluid

1шт.

Выбрано товаров: 12
