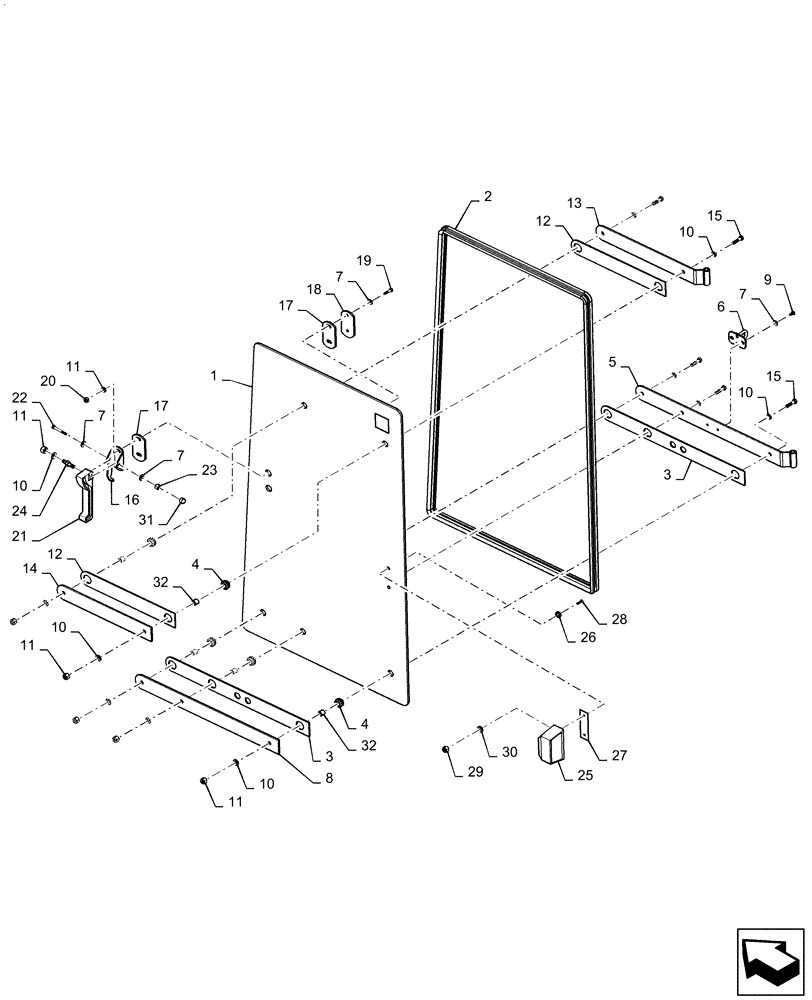

Запчасти Case 521F (90.156.AK[01]) - VAR - 782439 - UPPER RIGHT SIDE WINDOW COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84381077

GLASS

Right Side Window

1шт.

2

76303242

GASKET,3220mm L

Right Side Glass

1шт.

3

47452399

GASKET,3.5mm Thk

Lower Hinge

2шт.

4

4227144

GROMMET,M14 x 25.5 x 19.5

5шт.

5

84388567

HINGE

Lower

1шт.

6

76303154

BRACKET

Window Hook

1шт.

7

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

84477528

BAR PLATE

Lower Hinge

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

10

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

12

47452398

GASKET,3.5mm Thk

Upper Hinge

2шт.

13

84477530

HINGE

Upper

1шт.

14

84389636

BAR PLATE

Upper Hinge

1шт.

15

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

5шт.

16

84160715

BRACKET

Window Latch Handle

1шт.

17

87522593

GASKET,2mm Thk

Window Latch Bracket

2шт.

18

76303323

PLATE

Window Latch Mounting, Exterior

1шт.

19

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

20

825-1406

NUT,M6, Cl 8

2шт.

21

76043538

HANDLE

Window Latch

1шт.

22

326361A1

BOLT,Hex, M6 x 1 x 50mm, Cl 10.9

1шт.

23

832-10406

NUT,M6 x 1, Cl 8

1шт.

24

3805251

PIN

Handle Lock

1шт.

25

97399C1

HANDLE

Right Side Window

1шт.

26

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Handle Mounting Bushing

2шт.

27

R54047

PAD,30mm OD x 0.76mm Thk

Handle Mounting

1шт.

28

13311214

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

29

825-1405

NUT,M5, Cl 8

2шт.

30

895-25005

WASHER,M5 x 15 x 1.6

2шт.

31

87522630

CAP COVER

M6 Nut Cap, Black, Plastic

1шт.

32

87722494

SPACER,8.5mm ID x 14mm OD x 12mm L

5шт.
