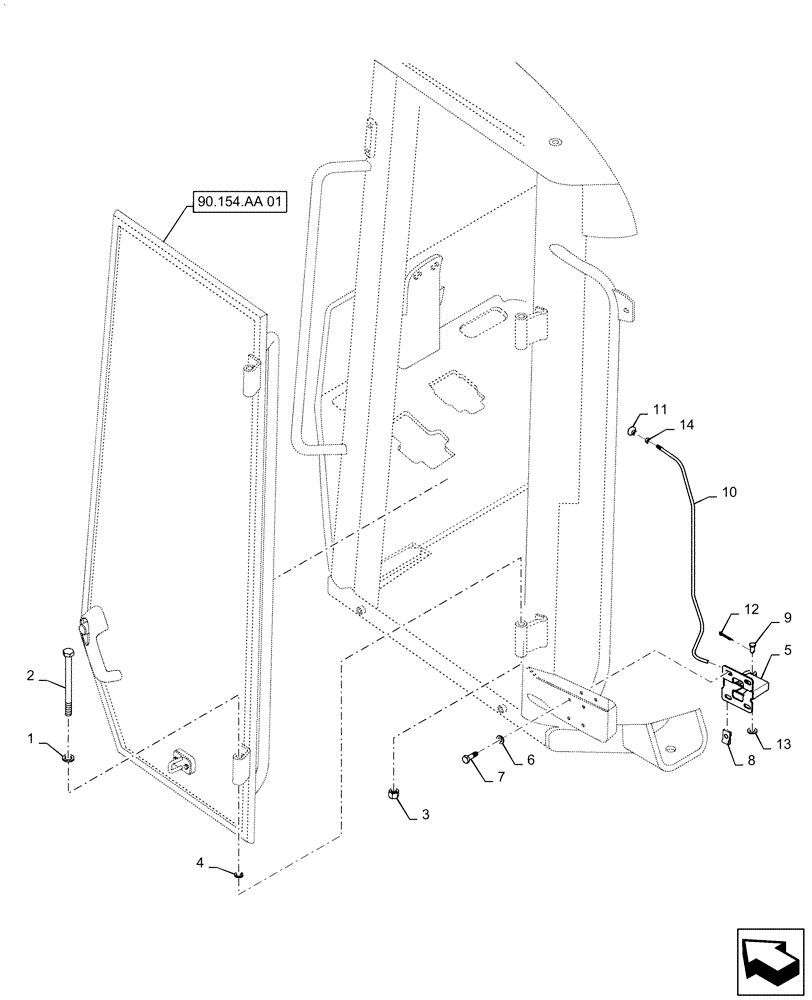

Запчасти Case 521F (90.154.AA[02]) - VAR - 782439, 782440 - LEFT DOOR INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

2шт.

2

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.

5

4227178

LOCK

Door Latch

1шт.

6

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

8

833-40306

SPRING NUT,M6, U

4шт.

9

71485274

PIN,5mm OD x 13mm L

Door Latch

1шт.

10

76303589

CABLE,693mm L

Door Unlock / Latch Release

1шт.

11

76303157

KNOB

M6, Door Release

1шт.

12

732-1610

COTTER PIN,M1.6 x 10

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.
