Запчасти Case 521F (90.151.AG) - VAR - 782439, 782440 - CAB ACCESSORIES, ASH TRAY, COAT HOOK, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

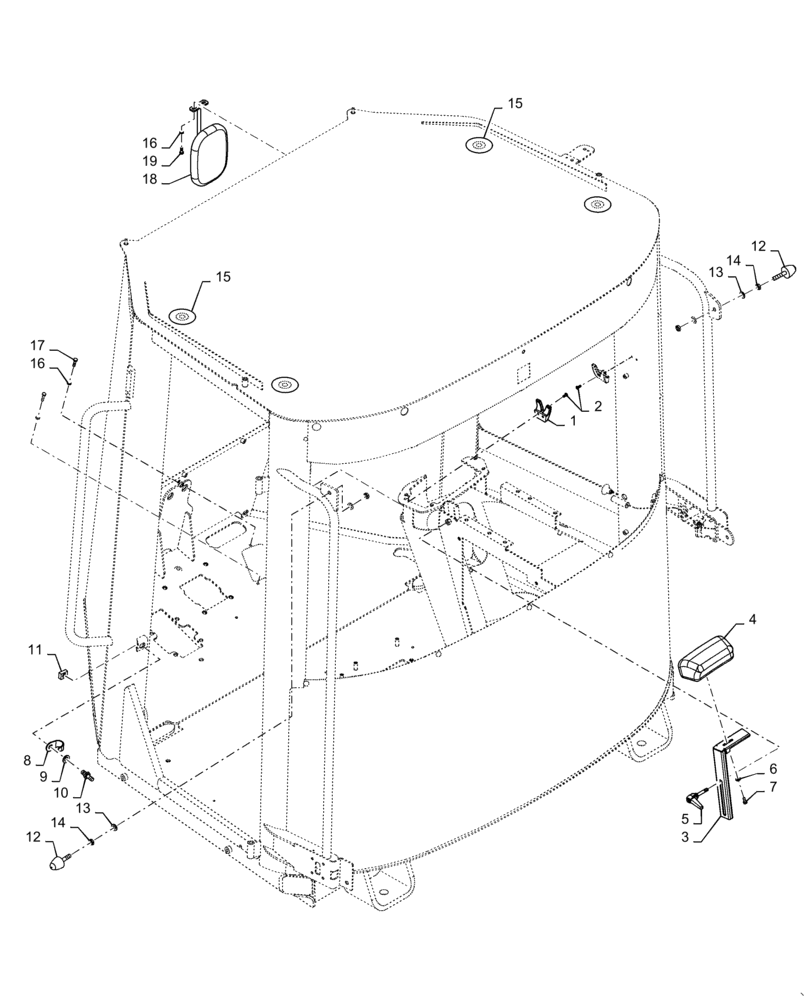

Схема запчастей Case 521F - (90.151.AG) - VAR - 782439, 782440 - CAB ACCESSORIES, ASH TRAY, COAT HOOK, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
12
14
5
1
18
16
13
10
9
13
12
14
17
15
16
6
4
8
19
7
15
11
3

Артикул

Название

Примечание

Количество

1

76067422

COAT HOOK

2шт.

2

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

3

87696480

SUPPORT

Armrest

1шт.

4

76303022

ARMREST

1шт.

5

76303338

HANDLE

M8 x 45

1шт.

6

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

8

76048628

GUARD

Door Stop Cover

1шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

10

76043511

LOCK BOLT

Lock Bolt

1шт.

11

76067753

LOCK NUT

Lock Bolt Nut

1шт.

12

76303588

RUBBER BUMPER,M10mm x 47mm L

Door Bumper

4шт.

13

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

14

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

15

47390947

COVER

Decal

4шт.

16

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

17

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

3шт.

18

76048869

REAR VIEW MIRROR

Inside

1шт.

19

297850A1

SCREW,Cross Pan Hd, M6 x 16

2шт.

Выбрано товаров: 19
