(90.151.AD[02]) - VAR - 482413, 482103, 424912 - SEAT BELT 3"

Запчасти Case 521F (90.151.AD[02]) - VAR - 482413, 482103, 424912 - SEAT BELT 3" (90) - PLATFORM, CAB, BODYWORK AND DECALS

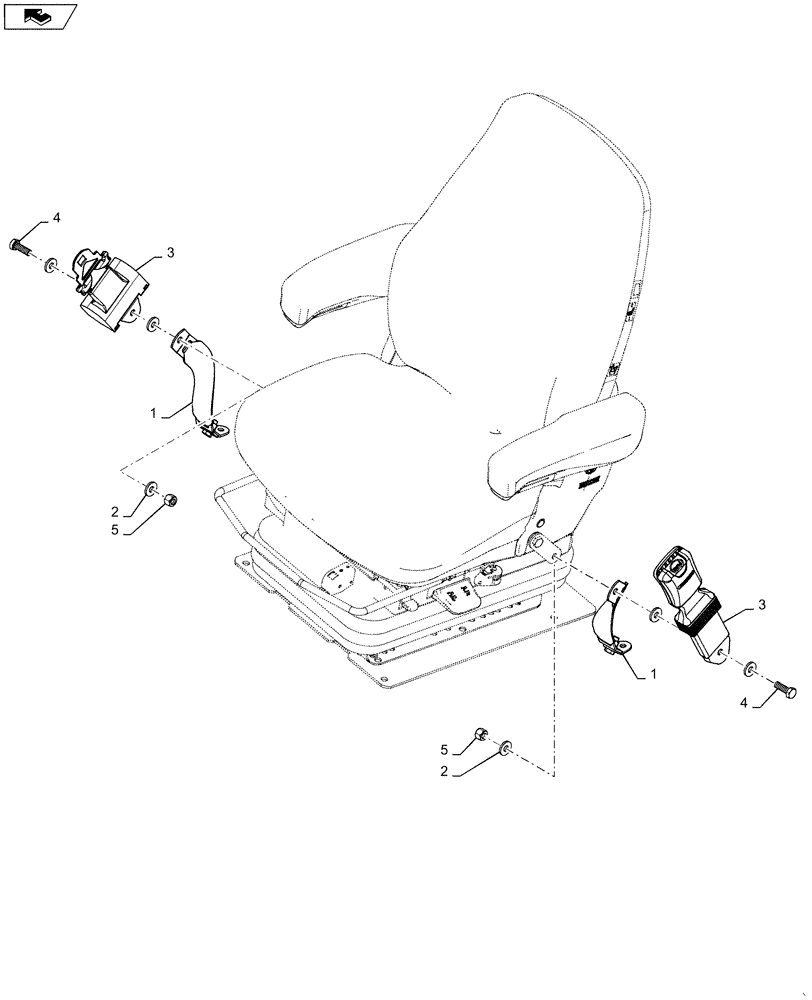

Схема запчастей Case 521F - (90.151.AD[02]) - VAR - 482413, 482103, 424912 - SEAT BELT 3" (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
5
2
3
home
3
1
home
5
home
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87545658

KIT

Tether Belt Hardware Included

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

3

84425028

SEAT BELT,3 inch Wide Belt

3"

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
