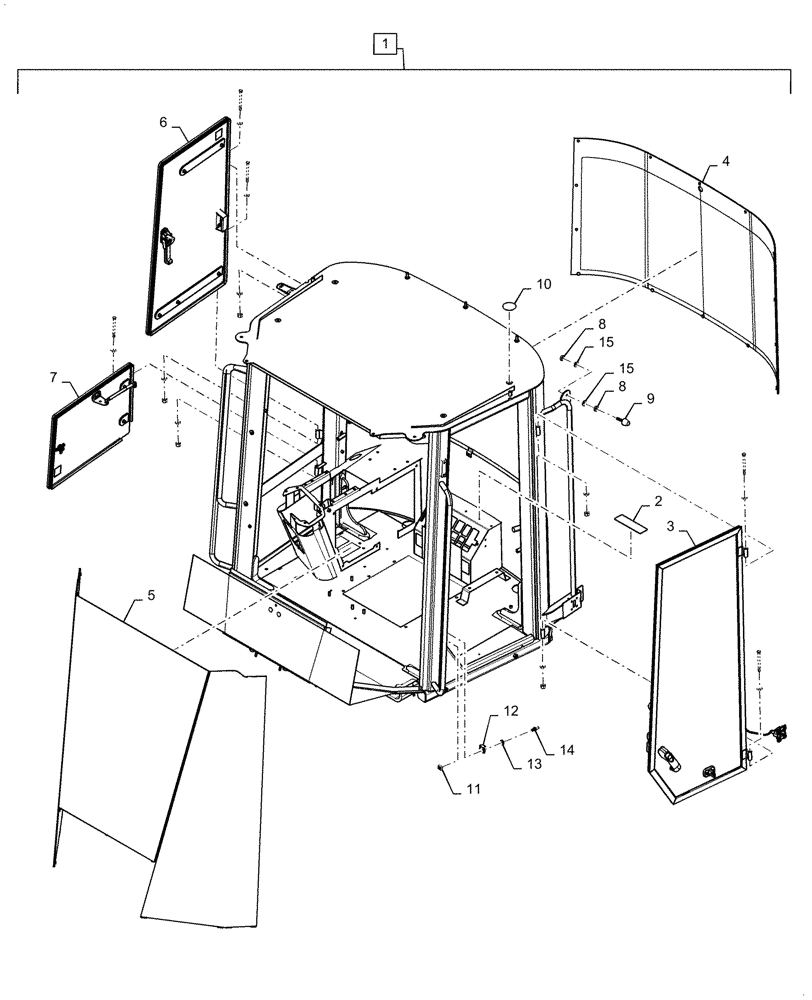

Запчасти Case 521F (90.150.AC[01]) - SERVICE, CAB ASSEMBLYY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84338702

CAB

Shell Assembly, Incl 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

ROPS SN Plate, Case, Incl in 1

1шт.

3

87371191

DOOR ASSY.

LH

1шт.

4

87371196

GLASS

Rear Cab

1шт.

5

87371198

GLASS

Front, Cab

1шт.

6

87371205

WINDOW FRAME

Rear, Cab

1шт.

7

87371206

DOOR

RH

1шт.

8

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

8шт.

9

76303588

RUBBER BUMPER,M10mm x 47mm L

Door Stop

4шт.

10

47390947

COVER

Decal

4шт.

11

76067753

LOCK NUT

Door Stop

1шт.

12

76048628

GUARD

Door Stop Cover

1шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

14

76043511

LOCK BOLT

Door Stop Mounting

1шт.

15

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
