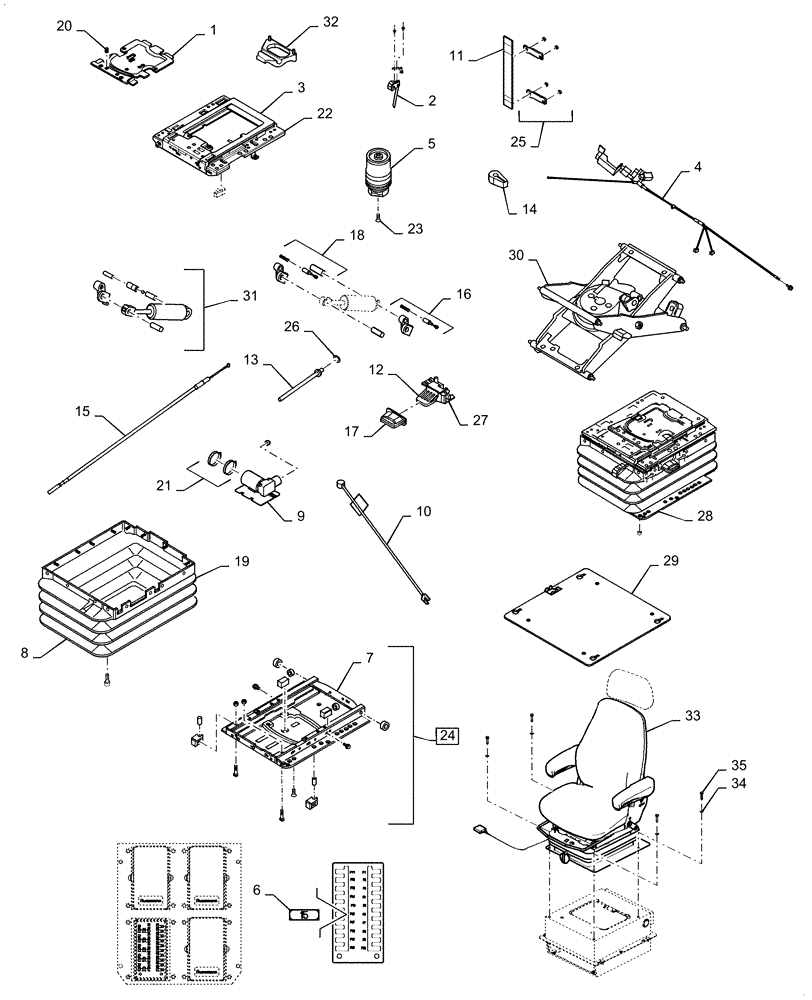

Запчасти Case 521F (90.124.AE[02]) - VAR - 482953, 424912 - SEAT ASSEMBLY - AIR, BOTTOM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84190947

COVER

1шт.

2

84190962

KIT

Level Indicator Mount

1шт.

3

84336513

SUSPENSION

Air Seat, Upper Bracket

1шт.

4

84190970

WIRE HARNESS

Air Ride Seat

1шт.

4

84280034

CABLE

Per VAR 482953

1шт.

5

84190972

SHOCK ABSORBER

Air Spring

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

7

84190976

PLATE

Lower Suspension

1шт.

8

84190978

BELLOWS

Assembly

1шт.

9

84280024

COMPRESSOR

12V, Seat Air, Suspension

1шт.

10

84336511

FLEXIBLE CABLE

Adaptor

1шт.

11

84280026

KIT

Seat Belt Loop

1шт.

12

345107A1

LEVER

Triggering Mechanism

1шт.

13

84190991

TUBE

Inner, Compressor

1шт.

14

82035123

HANDLE

Damper

1шт.

15

84190997

BOWDEN CONTROL

Cable, Damper

1шт.

16

84281076

ADJUSTER

Damper

1шт.

17

84191000

HANDLE

Adjustment, Seat Position

1шт.

18

84253103

REPAIR KIT

Shock Absorber Small Parts

1шт.

19

84191003

REPAIR KIT

Not Shown, Bellows Mounting Parts

1шт.

20

84191006

REPAIR KIT

Cover Small Parts

1шт.

21

84191008

REPAIR KIT

Compressor Small Parts

1шт.

22

84191010

REPAIR KIT

Not Shown, Suspension Small Parts

1шт.

23

84191012

REPAIR KIT

Air Spring Small Parts

1шт.

24

84191014

REPAIR KIT

Lower Suspension Plate, Incl 7

1шт.

25

84280027

KIT

Secondary Small Parts

1шт.

26

84191016

REPAIR KIT

Tube Small Parts

1шт.

27

84191017

REPAIR KIT

Handle Small Parts

1шт.

28

84336510

REPAIR KIT

Mounting Parts

1шт.

29

84336506

CONSOLE

Seat Mounting Plate

1шт.

30

84336501

SUSPENSION

Articulating Frame

1шт.

31

84191071

KIT

Shock Absorber

1шт.

32

84255280

THRUST BEARING

Air Seat, Suspension

1шт.

33

84273518

SEAT

Complete Assembly

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

35

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.
