(90.116.AG[01]) - VAR - 724021 - FENDER, WHEEL WELL

Запчасти Case 521F (90.116.AG[01]) - VAR - 724021 - FENDER, WHEEL WELL (90) - PLATFORM, CAB, BODYWORK AND DECALS

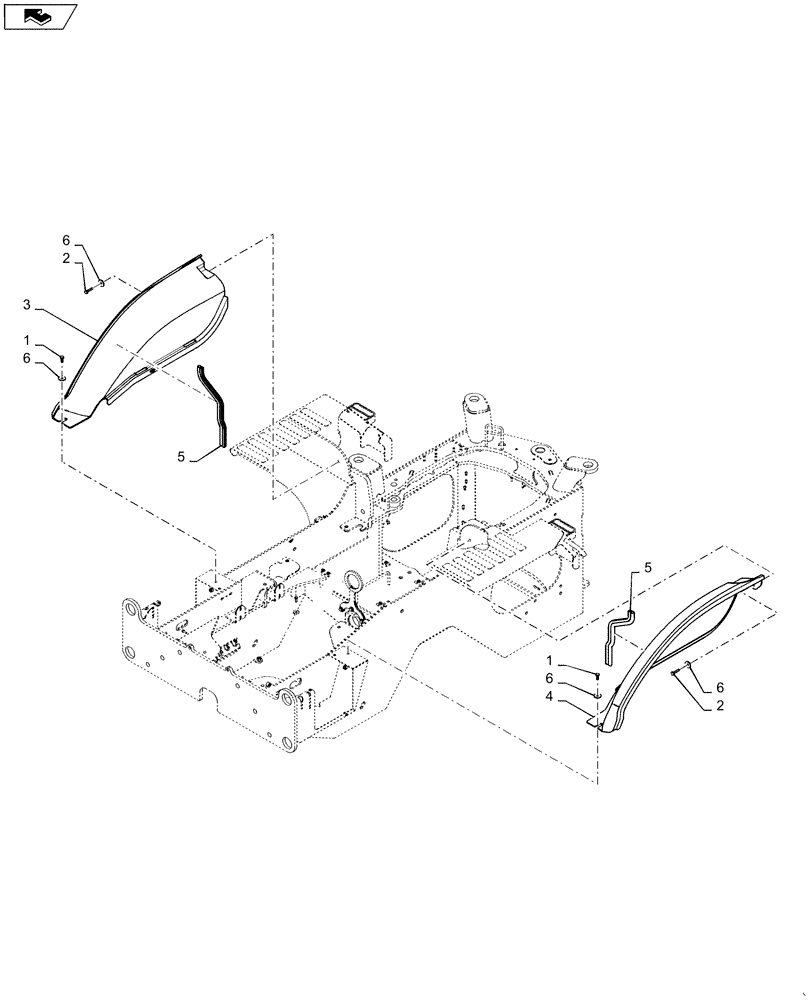

Схема запчастей Case 521F - (90.116.AG[01]) - VAR - 724021 - FENDER, WHEEL WELL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
6
5
1
3
6
4
6
5
home
2
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

3

403154A3

FENDER

Wheel Well LH Case Power Tan

1шт.

4

403155A3

FENDER

Wheel Well RH Case Power Tan

1шт.

5

383541A1

RUBBER SEAL,464mm L

Seal Fan Shroud

2шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.

Выбрано товаров: 6
