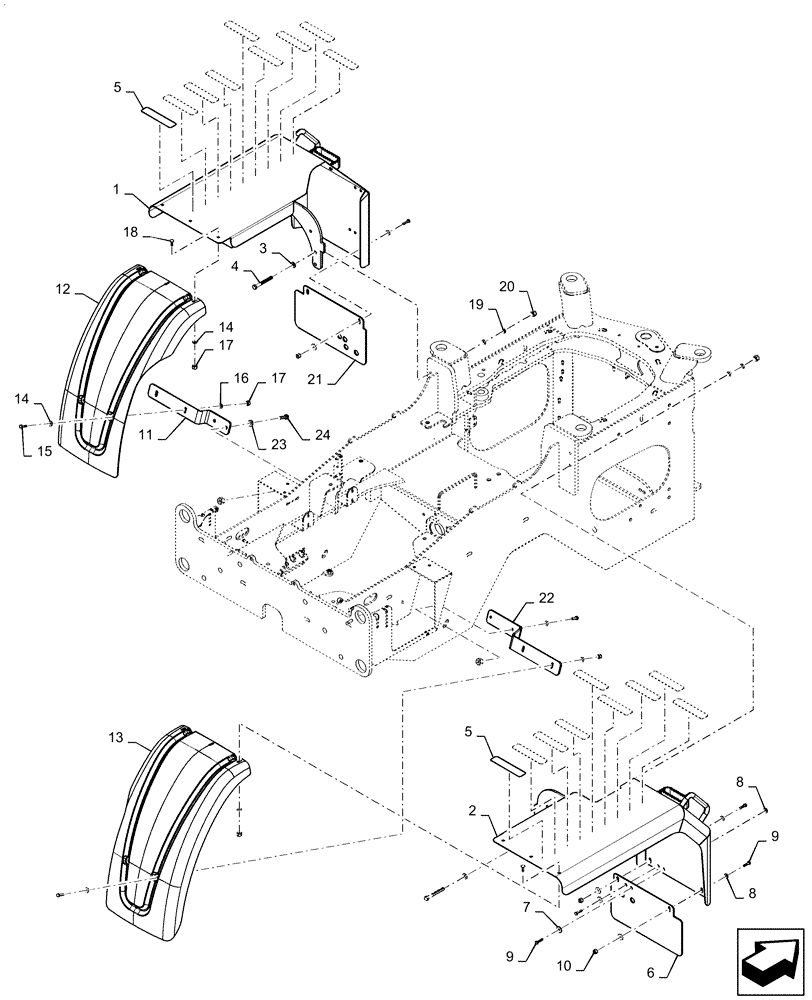

Запчасти Case 521F (90.116.AC[02]) - VAR - 428300 - REAR FENDER, WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87754699

SUPPORT

LH, Platform, CE Gray

1шт.

2

87754701

SUPPORT

RH, Platform, CE Gray

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

5

D55216

PAD,2" x 9"

18шт.

6

87605774

MUDFLAP

Mud Flap, Rear

1шт.

7

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

84352665

BRACKET

LH, Rear Fender, CNH Black

1шт.

12

84405950

REAR FENDER

Wide, CNH Black

1шт.

13

47448267

BRACKET

RH, Wide, CNH Black

1шт.

14

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

18

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

20

829-1412

NUT,M12, Cl 10.9

4шт.

21

47410500

MUDFLAP

Rear

1шт.

22

47448248

BRACKET

RH, Fender

1шт.

23

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
