Запчасти Case 521F (90.108.AC[02]) - VAR - 482106 - DECALS, FRENCH CANADIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

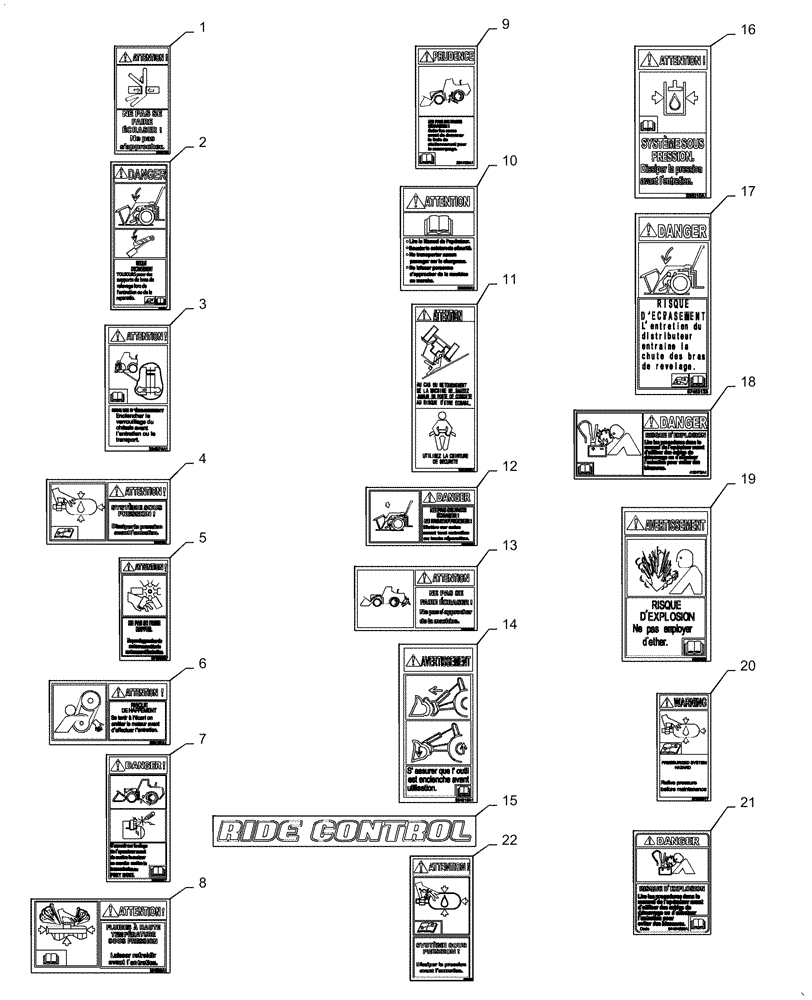

Схема запчастей Case 521F - (90.108.AC[02]) - VAR - 482106 - DECALS, FRENCH CANADIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
6
4
11
17
16
22
19
10
21
13
3
1
5
20
14
15
12
8
9
7
18

Артикул

Название

Примечание

Количество

1

334577A1

DECAL

Crush Hazard

2шт.

2

407738A2

DECAL

Lift Arm Support

1шт.

3

334574A1

DECAL

Caution Trans/Serv

1шт.

4

334012A1

DECAL

Fluid Under Pressure

1шт.

5

87488607

DECAL

Fan Warning

3шт.

6

388157A1

DECAL

Belt Entanglement Hazard

1шт.

7

87488617

DECAL

Danger Starting

1шт.

8

334663A1

WARNING DECAL

Fluid Under Pressure

1шт.

9

334706A1

DECAL

Caution Block Wheels

1шт.

10

333999A2

DECAL

General Warning

1шт.

11

124269A1

DECAL

Do Not Jump

1шт.

12

334678A1

DECAL

Danger Crush Hazard

1шт.

13

334686A1

DECAL

Warning Decal

1шт.

14

364919A1

DECAL

Attachment Test

1шт.

15

84493112

DECAL

Ride Control Case Only

1шт.

16

336010A1

DECAL

Pressurized System Hazard

3шт.

17

87453133

DECAL

Danger Crush Hazard

1шт.

18

412473A1

DECAL

Danger Explosion Hazard

1шт.

19

8603093

WARNING DECAL

Either Explosion

1шт.

20

87586617

DECAL

Fluid Under Presure

1шт.

21

84404560

DANGER DECAL

Explosion Hazard

1шт.

22

87597328

DECAL

Fluid Under Pressure

1шт.

Выбрано товаров: 22
