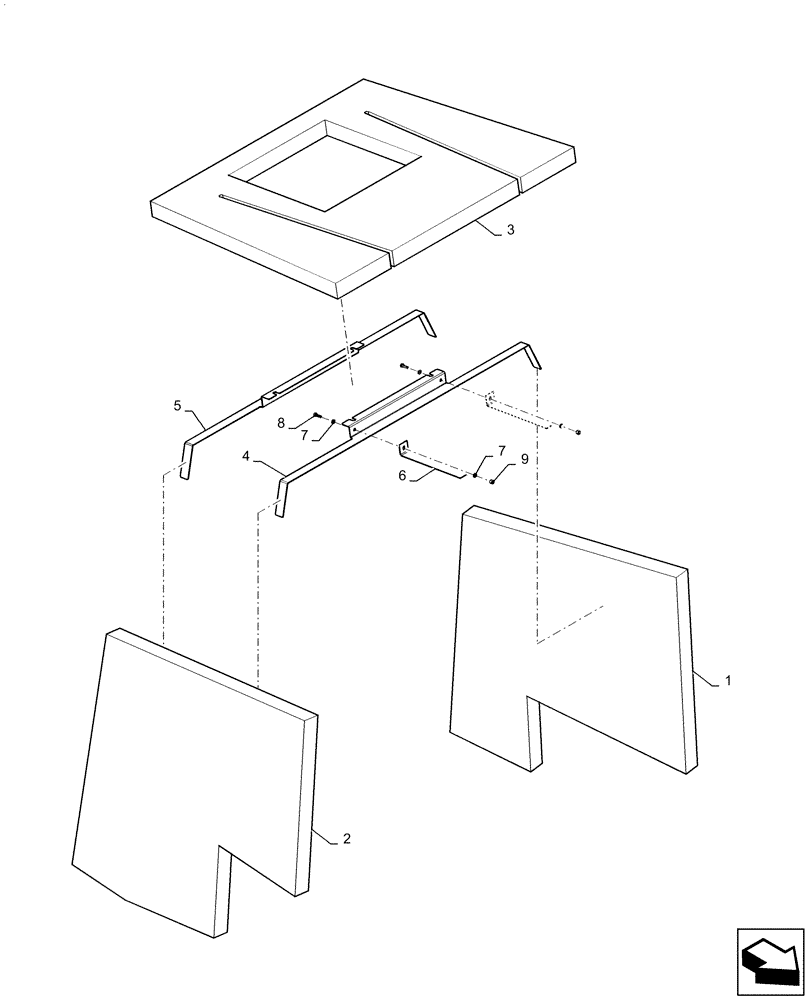

Запчасти Case 521F (90.100.AU[02]) - VAR - 782559 - HOOD NOISE SUPPRESSION PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47602723

PANEL

LH, Hood, Noise Suppression

1шт.

2

47602724

PANEL

RH, Hood, Noise Suppression

1шт.

3

47602725

PANEL

Top, Hood, Noise Suppression

1шт.

4

47602726

BRACKET

Front, Top Panel Support

1шт.

5

47602727

BRACKET

Rear, Top Panel Support

1шт.

6

408050A1

BRACKET

Extension, Upper Panel

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

832-10406

NUT,M6 x 1, Cl 8

4шт.
