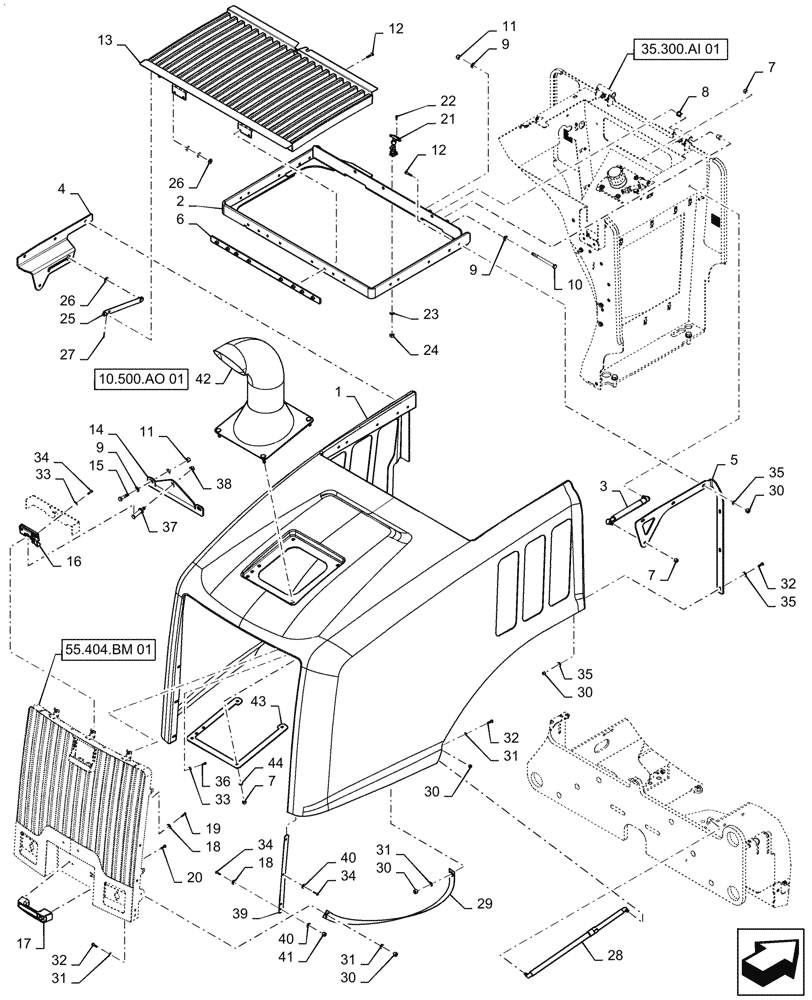

Запчасти Case 521F (90.100.AU[01]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47588893

HOOD

Assembly

1шт.

2

47578990

SUPPORT

Assembly, Hood Mounting

1шт.

3

87000505

CYLINDER ASSY.

Gas Strut

2шт.

4

47787852

SUPPORT

Top Hood Screen

1шт.

5

47787575

BRACKET

Hood Strut

1шт.

6

382712A2

PLATE ASSY.

Hood Support

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

8

382495A1

BUSHING

Flanged

4шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

10

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

14шт.

13

47703837

SCREEN

Hood, Top

1шт.

14

47878529

PLATE

Striker, Hood Latch

1шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

16

366176A2

LATCH

Assembly, Hood

1шт.

17

60-7083T1

HANDLE

Hood

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

19

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

20

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

21

384774A1

LATCH

Flexible Draw, Top Screen

1шт.

22

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

24

824-1405

NUT,M5, Cl 5

2шт.

25

47578962

BAR

Hood Prop

1шт.

26

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

733-3220

COTTER PIN,M3.2 x 20

2шт.

28

398767A1

GAS STRUT

Hood Lift

1шт.

29

47596198

STRAP

Hood Pull

1шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

34

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

10шт.

35

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

36

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

37

301081A1

BOLT

Striker

1шт.

38

43436

FLANGE NUT,M12

1шт.

39

47454920

PLATE

Backing, Grill Support

2шт.

40

892-11006

LOCK WASHER,M6

6шт.

41

832-10406

NUT,M6 x 1, Cl 8

2шт.

42

47417626

EXHAUST SYSTEM PIPE

1шт.

43

47397265

PLATE

Backing, Exhaust Pipe

1шт.

44

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.
