Запчасти Case 521F (82.300.AN[02]) - VAR - 424920, 424250 - BUCKET, ASSY 2.1 CU YARD (82) - FRONT LOADER & BUCKET

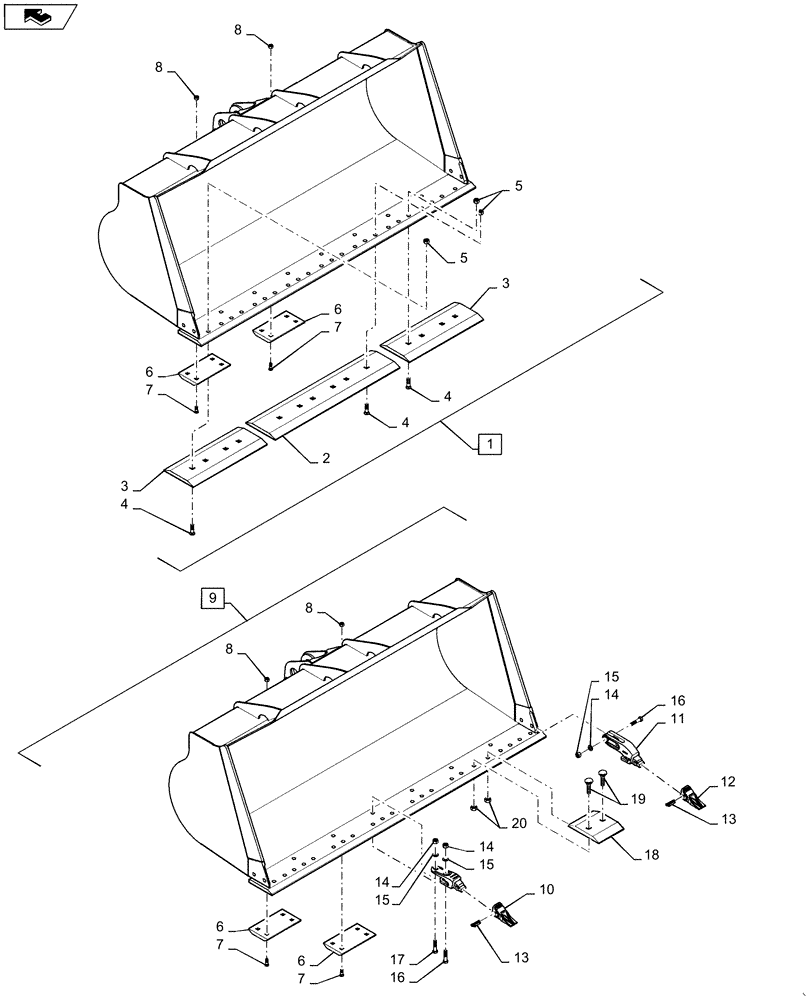

Схема запчастей Case 521F - (82.300.AN[02]) - VAR - 424920, 424250 - BUCKET, ASSY 2.1 CU YARD (82) - FRONT LOADER & BUCKET
3
12
6
3
1
15
9
home
4
4
10
7
7
15
8
14
14
6
6
5
8
18
14
19
11
15
5
16
17
16
8
13
4
7
7
13
20
2
8
6

Артикул

Название

Примечание

Количество

1

87651193

BUCKET

2.1 CU Yard Bucket Bolt On Cutting Edge, Incl 2 - 8

1шт.

2

87651175

CUTTING EDGE

Bolt on Center

1шт.

3

87651209

CUTTING EDGE,593mm L x 254mm W x 25mm Thk

Bolt on Outer

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

18шт.

6

360939A1

PLATE

Skid Bolt on

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

9

84168095

BUCKET

2.1 Cu Yard Bucket With Teeth, Incl 10 - 20

1шт.

10

84168133

BUCKET TOOTH SHANK

Adapter Tooth Bolt on Center

6шт.

11

84168129

BUCKET TOOTH SHANK

Adapter Tooth Bolt on Corner

2шт.

12

84168130

BUCKET TOOTH POINT

End

8шт.

13

84168132

BUCKET TOOTH KEY

Pin

8шт.

14

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

15

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

10шт.

16

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

17

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

18

87651192

CUTTING EDGE

Segment Between Teeth

7шт.

19

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

2шт.

20

425-1612

NUT,3/4"-10, G5, Hvy

2шт.

Выбрано товаров: 20
