Запчасти Case 521F (82.100.AG[03]) - VAR - 734007, 424250, 424249 - COUPLING, COMPONENTS ACS COMPATIBLE (82) - FRONT LOADER & BUCKET

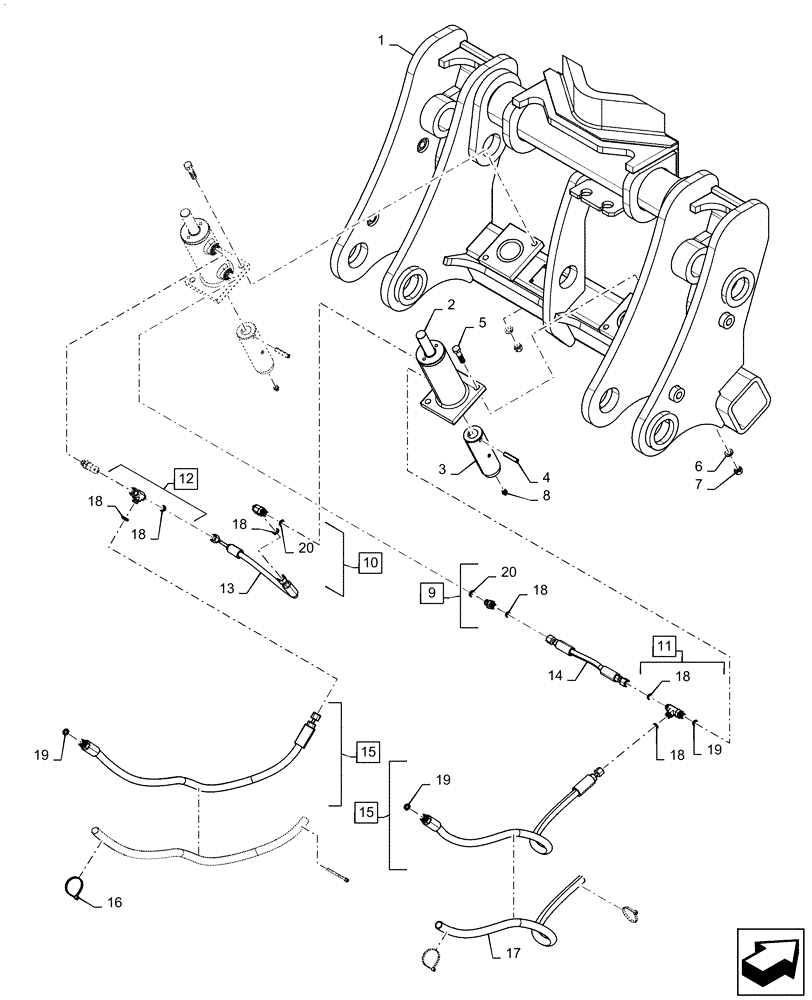

Схема запчастей Case 521F - (82.100.AG[03]) - VAR - 734007, 424250, 424249 - COUPLING, COMPONENTS ACS COMPATIBLE (82) - FRONT LOADER & BUCKET
18
10
13
2
14
20
9
3
7
12
18
17
5
6
20
1
4
19
18
18
16
18
18
8
15
11
19
15
19

Артикул

Название

Примечание

Количество

1

84538639

FRAME

Coupler, ACS Compatible

1шт.

2

84538634

HYDRAULIC CYLINDER

Coupler

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18, 20

1шт.

10

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18,20

2шт.

11

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18, 19

1шт.

12

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 18

1шт.

13

84538677

HYDRAULIC HOSE

367mm L

1шт.

14

84539838

HYDRAULIC HOSE

263mm L

1шт.

15

84561077

HOSE ASSY.

1041mm L, Incl 19

2шт.

16

86566989

CABLE TIE,208mm L

4шт.

17

86024407

PROTECTING COVER

Nylon, Sleeve, 1170mm L

2шт.

18

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

7шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

Выбрано товаров: 20
