Запчасти Case 521F (82.100.AG[01]) - VAR - 424988, 424250 , 424249 - BUCKET COUPLING Z-BAR, XR (82) - FRONT LOADER & BUCKET

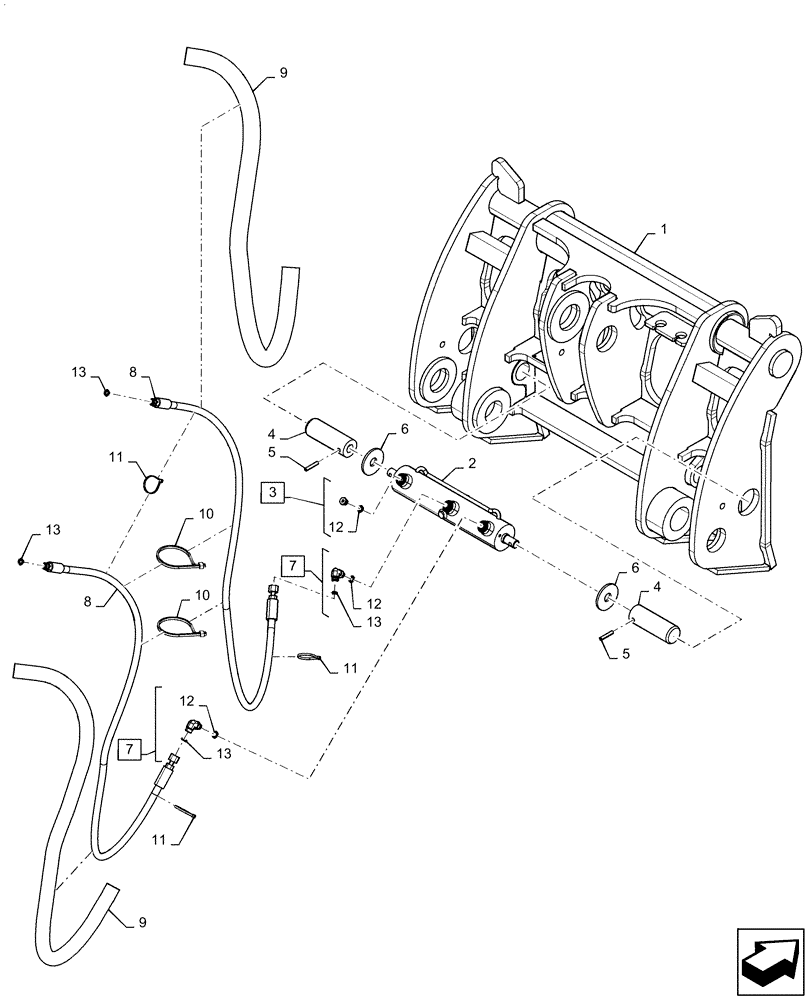

Схема запчастей Case 521F - (82.100.AG[01]) - VAR - 424988, 424250 , 424249 - BUCKET COUPLING Z-BAR, XR (82) - FRONT LOADER & BUCKET
9
10
5
13
13
9
11
10
12
13
13
5
6
1
2
7
8
11
3
12
7
4
12
6
4
8
11

Артикул

Название

Примечание

Количество

1

87482168

FRAME

Bucket Coupler

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

1шт.

3

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 12

1шт.

4

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Plunger, Coupler

2шт.

5

87023162

PIN,9.53mm OD x 44.45mm L

Plunger

2шт.

6

87741104

INDICATOR

Visual, Ring

2шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 12, 13

2шт.

8

87736979

HOSE ASSY.

Hydraulic, 1803mm Lg

2шт.

9

87492055

PROTECTIVE SLEEVE

Hose Protector

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

11

86566989

CABLE TIE,208mm L

4шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

Выбрано товаров: 13
