Запчасти Case 521F (55.988.AB[01]) - SELECTIVE CATALYTIC REDUCTION WIRE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

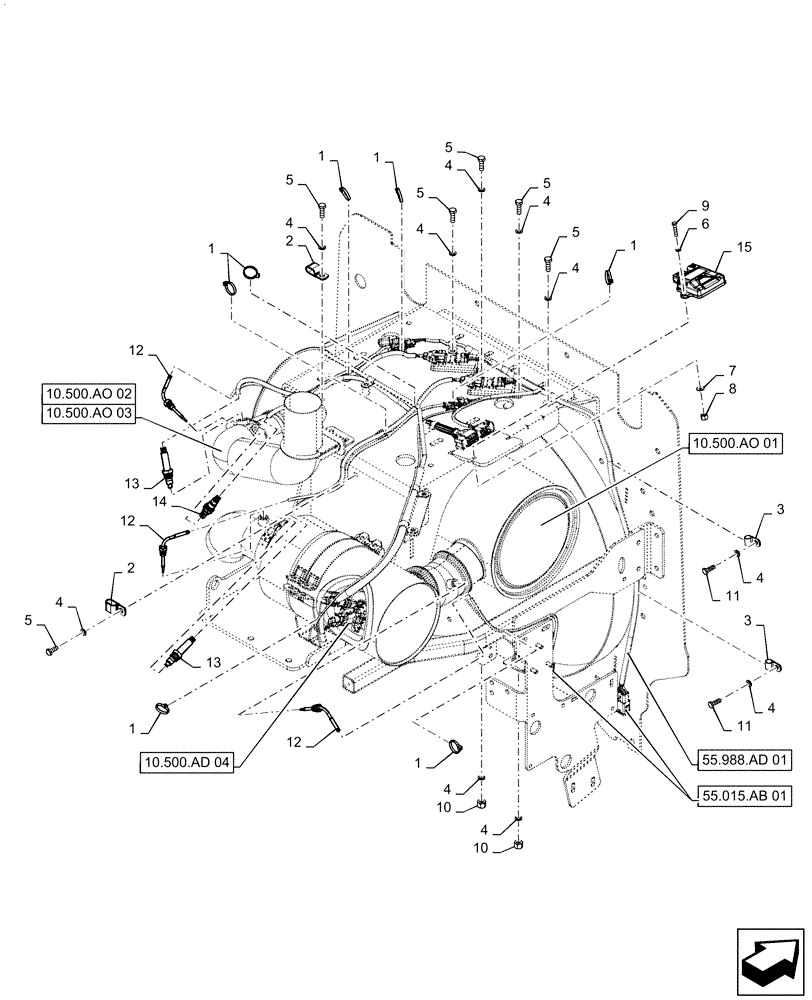

Схема запчастей Case 521F - (55.988.AB[01]) - SELECTIVE CATALYTIC REDUCTION WIRE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS
10.500.ad 04
2
2
4
7
5
5
15
9
12
10
5
4
1
3
4
4
3
1
6
11
4
13
1
5
4
4
5
12
12
11
8
5
1
14
1
4
4
13
10
4
1
55.015.ab 01
55.988.ad 01
10.500.ao 01
10.500.ao 02
10.500.ao 03

Артикул

Название

Примечание

Количество

1

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

2

L19029

CLAMP

Double, Coated

2шт.

3

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

12

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature

3шт.

13

84498212

SENSOR

NOX

2шт.

14

47520140

SENSOR,8 Pin

NH3

1шт.

15

47368959

ECU

NH3 Control

1шт.

Выбрано товаров: 15
