(55.900.AC[02]) - HOOD WIRE HARNESS

Запчасти Case 521F (55.900.AC[02]) - HOOD WIRE HARNESS (55) - ELECTRICAL SYSTEMS

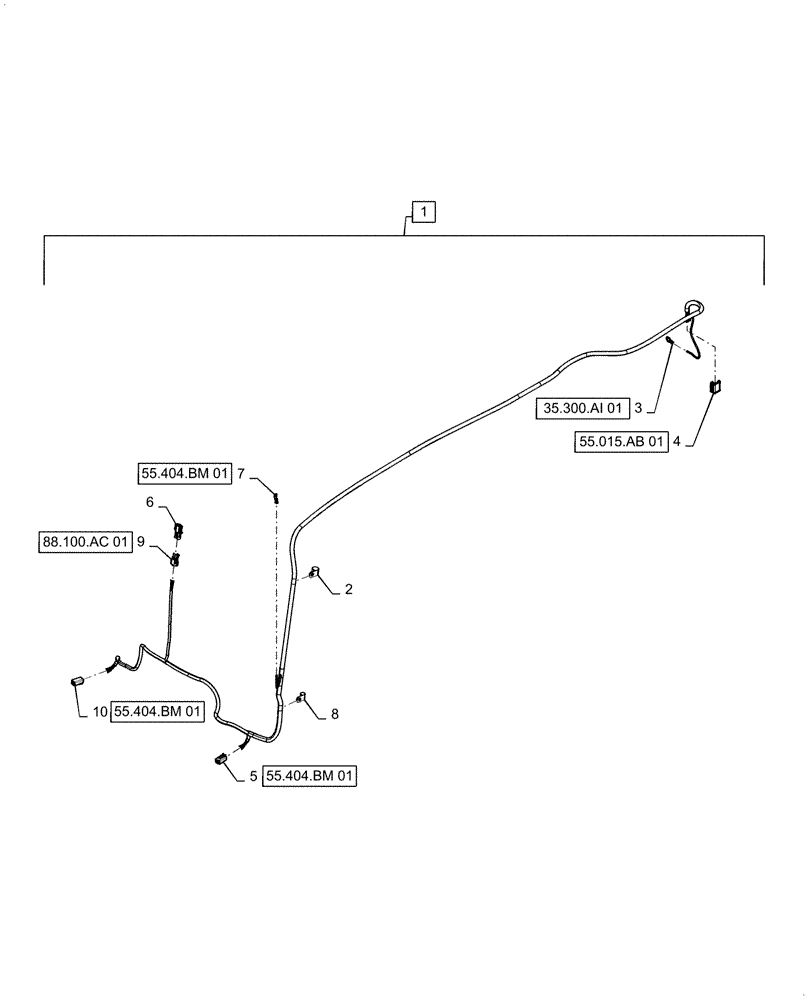

Схема запчастей Case 521F - (55.900.AC[02]) - HOOD WIRE HARNESS (55) - ELECTRICAL SYSTEMS
88.100.ac 01
6
9
8
1
5
7
2
4
3
10
55.015.ab 01
55.404.bm 01
55.404.bm 01
55.404.bm 01
35.300.ai 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613056

WIRE HARNESS

Hood, Complete Harness

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

3

1964718C1

TERMINAL CONNECTOR

10mm Ring Terminal, Harness Groung to Cooling Frame

1шт.

4

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Hood Harness to Main Engine Harness

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

8шт.

4

84806312

LOCKING TAB,Wedge Lock

1шт.

5

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Right Side Combination Light

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4шт.

5

84074640

LOCKING TAB,Wedge Lock

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

Weather Pack Cap, License Plate Light Plug

1шт.

6

87692880

CABLE TERMINAL

2шт.

7

1964716C1

TERMINAL CONNECTOR

6mm Ring Terminal, Ground, Rear Grille

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Plug, License Plate Light

1шт.

9

87692880

CABLE TERMINAL

2шт.

10

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Left Side Combination Light

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4шт.

10

84074640

LOCKING TAB,Wedge Lock

1шт.
