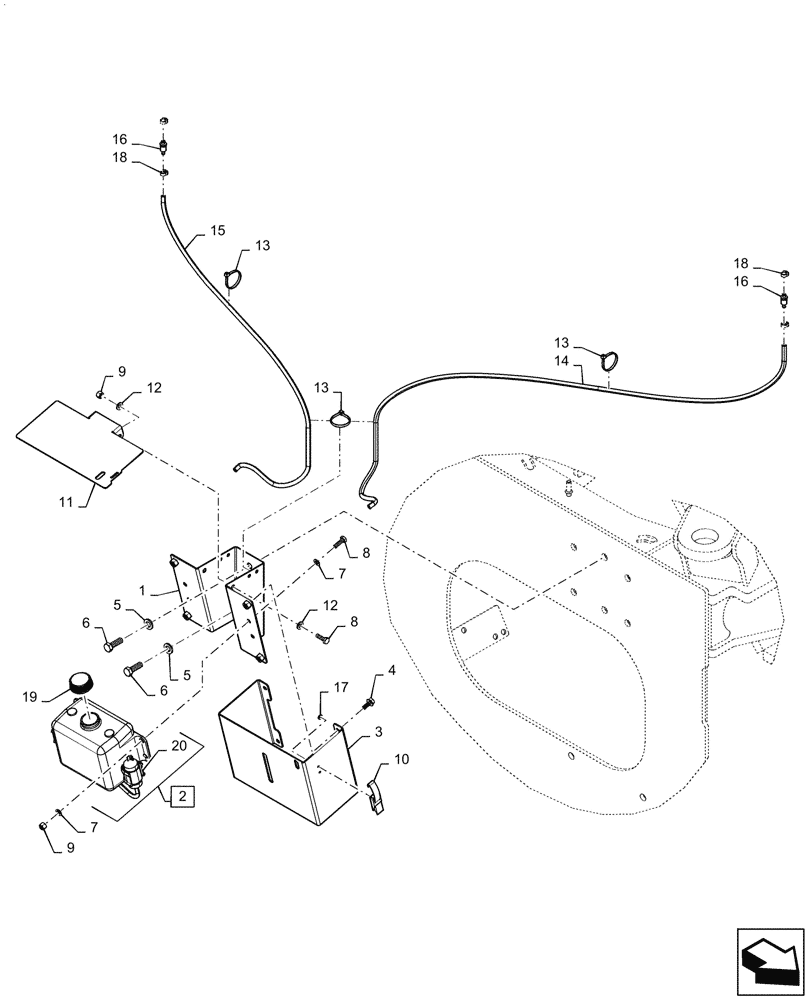

Запчасти Case 521F (55.518.AT[01]) - VAR- 782439, 782440 - WINDSHIELD WASHER RESERVOIR (55) - ELECTRICAL SYSTEMS

1

87661882

BRACKET

Washer Bottle Mounting

1шт.

2

87661890

CONTAINER

Washer Fluid, 2 Qt, Incl 19, 20

1шт.

3

87661886

SHIELD

Washer Bottle, Outer

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

10

60-4640T1

LATCH

Securing, Bottle Outer Shield to Top Cover

1шт.

11

87652512

COVER

Washer Bottle, Top

1шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

14

87661888

HOSE,0.188 ID x 54.00"

Front Wiper, 54" L

1шт.

15

87663402

HOSE,4.8mm ID x 1041mm L

Rear Wiper, 47" L

1шт.

16

84037530

VALVE

One-Way Check Valve, Washer Fluid Lines

2шт.

17

86637657

RIVET,Pop, 5/32" x .300"

Latch Mounting

2шт.

18

84477330

HOSE CLAMP,8.97mm - 10.11mm

4шт.

19

87439461

CAP

Washer Fluid Bottle

1шт.

20

48042633

PUMP,24V

Washer Fluid Bottle

2шт.
