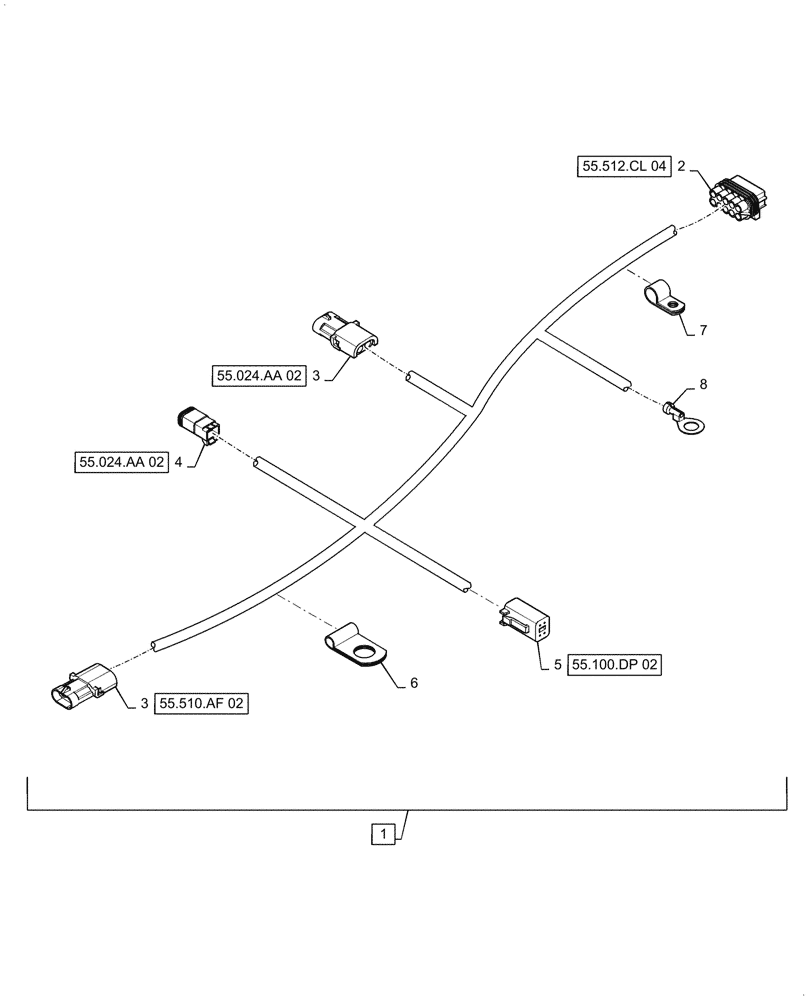

Запчасти Case 521F (55.512.CL[03]) - VAR - 482930, 482913 - JOYSTICK, FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

84153444

WIRE HARNESS

Joystick Frame, Incl 2 - 8

1шт.

2

256352A1

CONNECTOR, ELEC

JSS Frame to Cab

1шт.

2

87688852

ELEC. TERMINAL PIN

10шт.

2

87690604

WEDGE

1шт.

3

245483C1

ELEC CONNECTOR,Male, 2 Pin

JSS Load Sense

2шт.

3

87692880

CABLE TERMINAL

2шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

JSS Pilot Dump

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

JSS Hydraulic Valve

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4шт.

5

84074640

LOCKING TAB,Wedge Lock

1шт.

6

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

6.3 mm

1шт.

7

515-21111

CLAMP

11.1 mm

1шт.

8

1964706C1

TERMINAL CONNECTOR

Ring

1шт.
