(55.512.CL[02]) - VAR - 482930, 482913 - JOYSTICK JUMPER HARNESS

Запчасти Case 521F (55.512.CL[02]) - VAR - 482930, 482913 - JOYSTICK JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

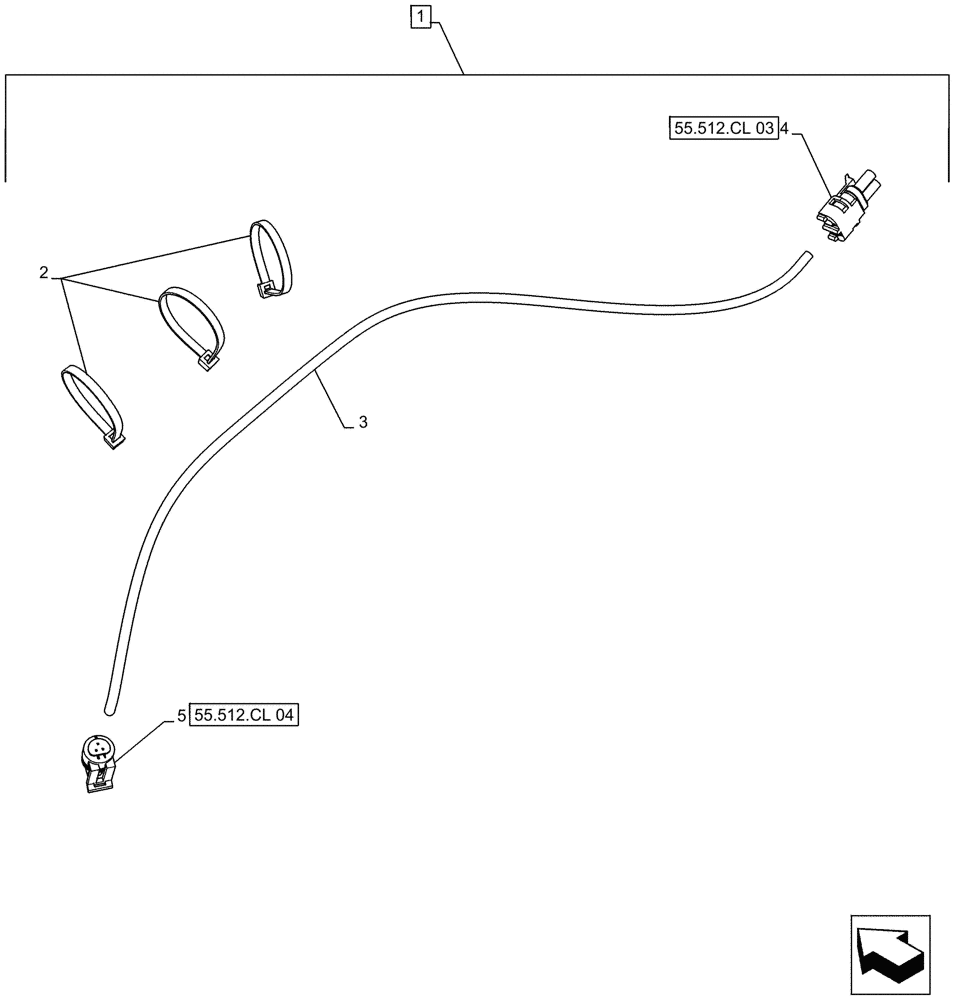

Схема запчастей Case 521F - (55.512.CL[02]) - VAR - 482930, 482913 - JOYSTICK JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
55.512.cl 04
4
3
5
2
1
55.512.cl 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84227716

WIRE HARNESS

Joystick Jumper Assy, Includes 2 - 5

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

3

84222011

WIRE HARNESS

Pressure Sensor

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

2 Cavity Plug

1шт.

4

87692880

CABLE TERMINAL

2шт.

5

198456A1

ELEC CONNECTOR,Female

3 Cavity Plug

1шт.

5

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

3шт.
