(55.510.AF[03]) - VAR - 782440 - CAB MAIN WIRE HARNESS ASSEMBLY

Запчасти Case 521F (55.510.AF[03]) - VAR - 782440 - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

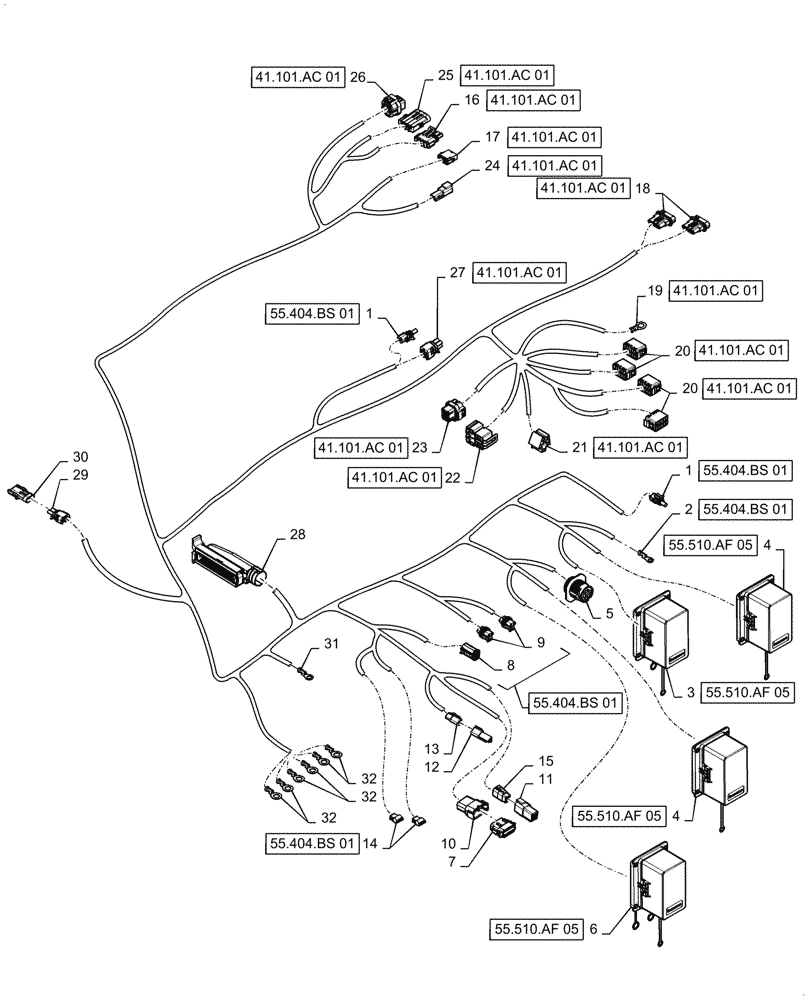

Схема запчастей Case 521F - (55.510.AF[03]) - VAR - 782440 - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
41.101.ac 01
32
20
23
1
8
19
20
4
16
21
10
32
13
29
28
27
6
25
14
7
3
32
11
22
15
17
26
31
4
1
18
2
5
12
30
24
9
55.510.af 05
55.510.af 05
55.510.af 05
55.510.af 05
55.404.bs 01
55.404.bs 01
55.404.bs 01
55.404.bs 01
55.404.bs 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
41.101.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

245480C1

ELEC CONNECTOR,1 Pin

2шт.

2

1964721C1

TERMINAL CONNECTOR

1шт.

3

87315249

FUSE BOX

1шт.

4

87312843

FUSE BOX

2шт.

5

87736919

CONTACT HOUSING,Female, 9 Pole

1шт.

6

87315248

RELAY

20 Fuse Bussed

1шт.

7

87700156

CONTACT HOUSING,Female, 12 Pole

1шт.

8

87694101

ELEC CONNECTOR,Female, 4 Cavities

1шт.

9

256340A1

CONNECTOR, ELEC

2шт.

10

87700155

ELEC CONNECTOR,Female, 12 Cavities

1шт.

11

280453A1

ELEC CONNECTOR,Male, 6 Pin

1шт.

12

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

13

225295C1

ELEC CONNECTOR,Female, 3 Pin

1шт.

14

199436A1

CONNECTOR, ELEC

2шт.

15

280451A1

CONNECTOR,ELECTRIC

6 Cavity

1шт.

16

245486C1

ELEC CONNECTOR,4 Pin

1шт.

17

87635073

CONTACT HOUSING,Female, 10 Pole

1шт.

18

87324391

TERMINAL CONNECTOR

6 Way Splice

3шт.

19

1964706C1

TERMINAL CONNECTOR

Ring Terminal

1шт.

20

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

4шт.

21

225253C1

CONNECTOR, ELEC

1шт.

22

87318288

TERMINAL CONNECTOR

1шт.

23

87410948

CONTACT HOUSING,Female, 26 Pole

1шт.

24

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

25

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

26

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

1шт.

27

245715C1

ELEC CONNECTOR,4 Pin

1шт.

28

NSS

NOT SOLD SEPARAT

Incl in 47405040, Complete Harness

1шт.

29

245482C1

ELEC CONNECTOR,2 Pin

1шт.

30

245486C1

ELEC CONNECTOR,4 Pin

1шт.

31

1964722C1

TERMINAL CONNECTOR

Ring Terminal

1шт.

32

1964718C1

TERMINAL CONNECTOR

Ring Terminal

6шт.
