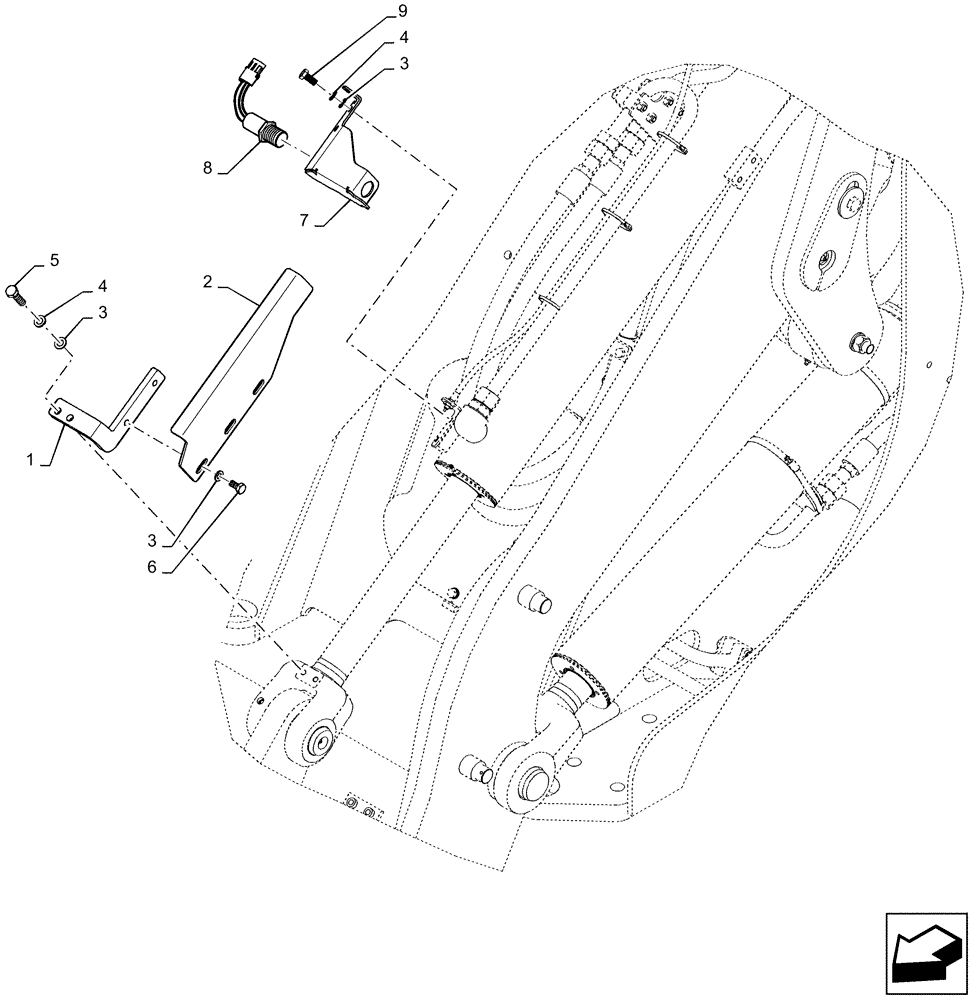

Запчасти Case 521F (55.415.AB[06]) - RETURN TO DIG, XT (55) - ELECTRICAL SYSTEMS

1

87304560

BRACKET

Cylinder Mounting

1шт.

2

87448979

BRACKET

Target

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

7

87479706

BRACKET

Switch Mount

1шт.

8

1546498C1

SWITCH

Proximity, Return to Dig

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.
