(55.415.AB[05]) - BUCKET HEIGHT AND RETURN TO TRANSPORT, XT

Запчасти Case 521F (55.415.AB[05]) - BUCKET HEIGHT AND RETURN TO TRANSPORT, XT (55) - ELECTRICAL SYSTEMS

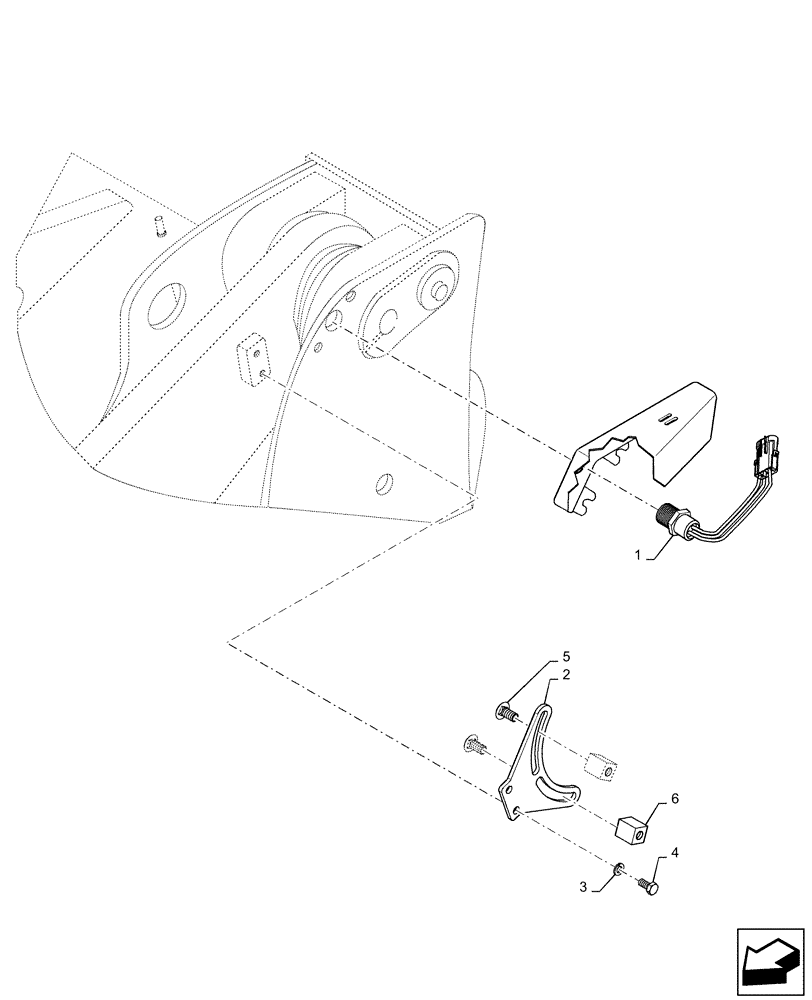

Схема запчастей Case 521F - (55.415.AB[05]) - BUCKET HEIGHT AND RETURN TO TRANSPORT, XT (55) - ELECTRICAL SYSTEMS
2
1
3
6
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1546498C1

SWITCH

Proximity, Bucket Height and Return to Transport

1шт.

2

379149A2

MOUNTING PLATE

Target

1шт.

3

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

4

87437102

BLOCK

Switch Trigger

2шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.
