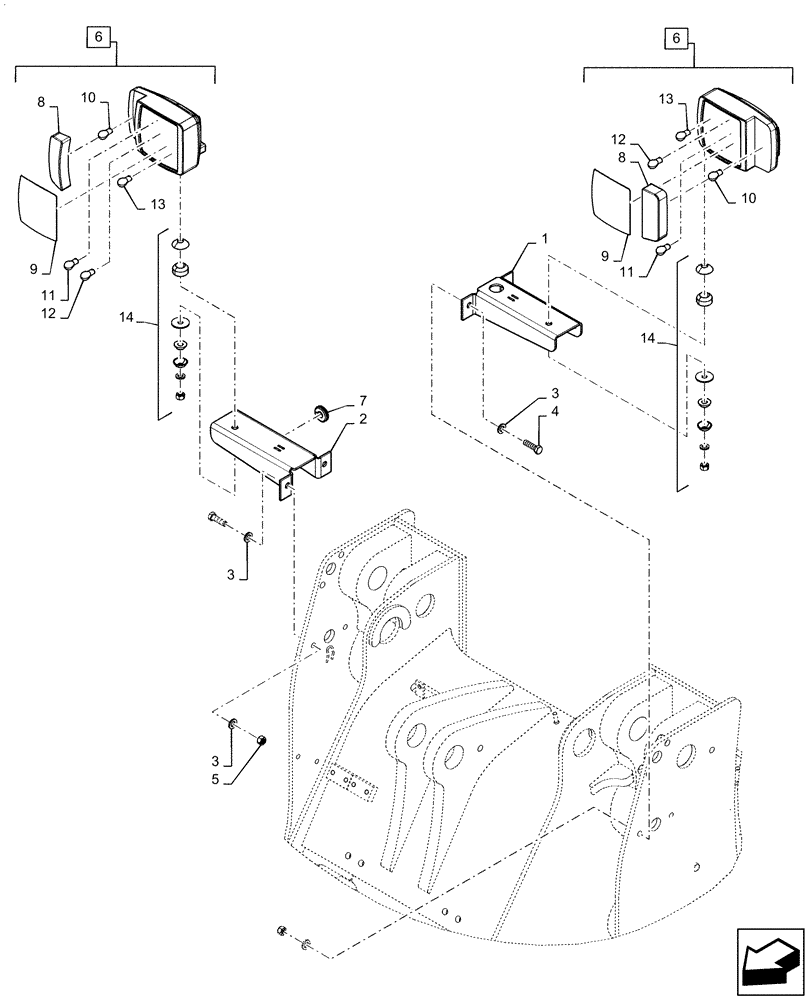

Запчасти Case 521F (55.404.AL[01]) - FRONT LIGHT INSTALLATION (55) - ELECTRICAL SYSTEMS

1

87749484

BRACKET

Left

1шт.

2

87749489

BRACKET

Right

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Left, Incl 8 - 14

1шт.

6

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Right, Incl 8 - 14

1шт.

7

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

8

408142A1

LENS

Flasher/ Turn

1шт.

9

408143A1

LENS

Headlamp

1шт.

10

410939A1

BULB,S8, 24V, 21W

Turn Signal/ Flasher

1шт.

11

410940A1

BULB,T4W, 24V, 4W

Position

1шт.

12

410941A1

BULB,Halogen, 24V, 70W

Low Beam

1шт.

13

410942A1

BULB,H3, 24V, 70W

High Beam

1шт.

14

NSS

NOT SOLD SEPARAT

Light Mounting Hardware, Incl in 6

1шт.
