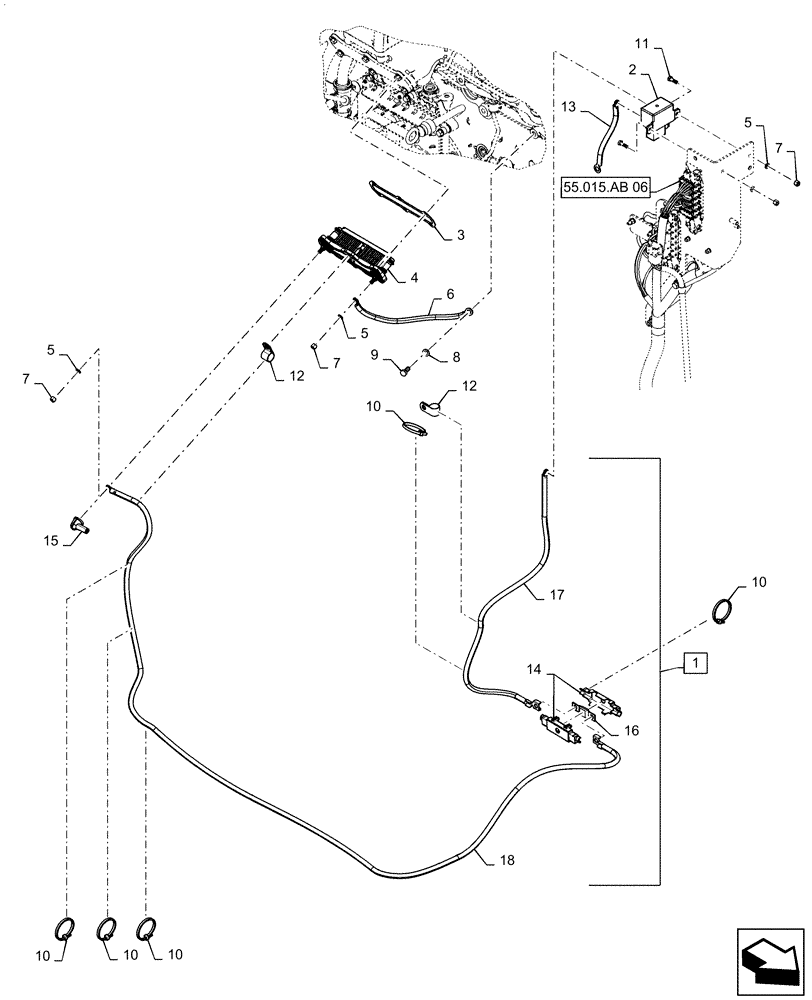

Запчасти Case 521F (55.202.AA[01]) - VAR- 482322 - GRID HEATER INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47615205

CABLE

Grid Heater Power, 3141mm L, Incl 14 - 18

1шт.

2

84540512

RELAY,150A

Grid Heater Power

1шт.

3

2854701

GASKET,0.8mm Thk

Grid Heater to Intake

1шт.

4

87300128

HEATER,24V, 2400W

Assembly

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

6

87398558

CABLE

Grid Heater Ground, 344mm L, 516" and 6mm Ring Terminal

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

13

47616755

CABLE

Grid Heater Relay Power, 191mm L, 10mm and 6mm Ring Terminal

1шт.

14

82027575

FUSE HOLDER

W/ Cable Mounting Nuts

1шт.

15

399470R1

BOOT

Terminal Cover

1шт.

16

8501311

FUSE,150A, Megaval

1шт.

17

47615202

CABLE

Heater Relay to Fuse, 792mm L

1шт.

18

47615204

CABLE

Fuse to Heater, 2298mm L

1шт.
