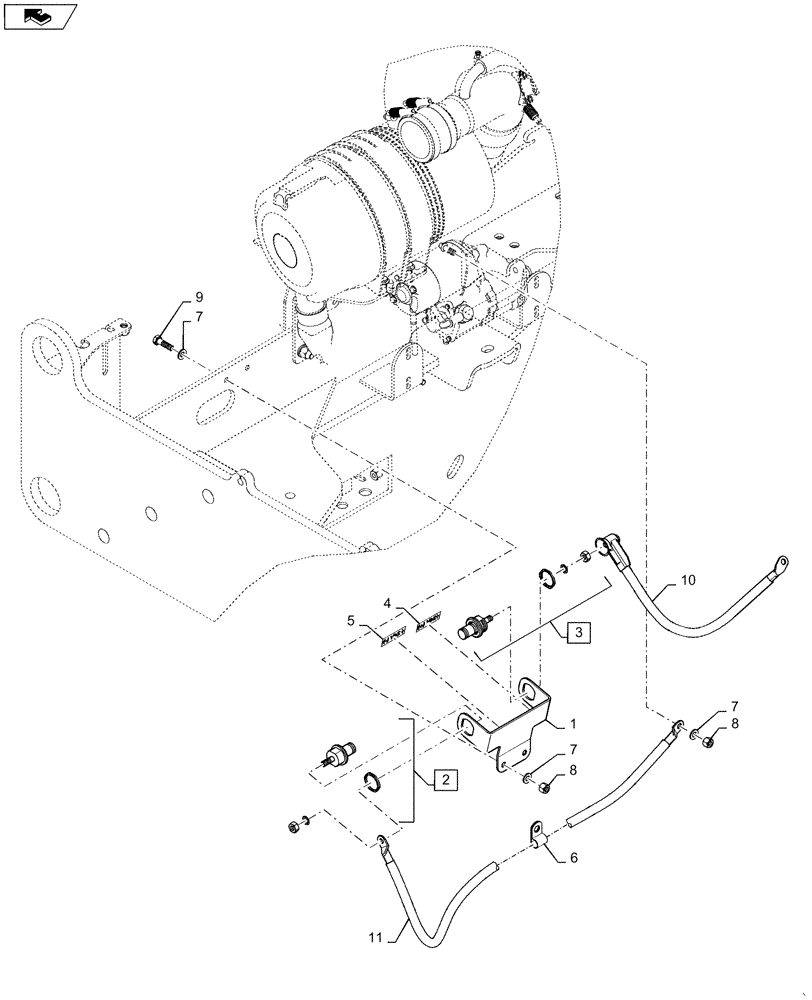

Запчасти Case 521F (55.201.AU[01]) - VAR - 726013 - REMOTE JUMP POST (55) - ELECTRICAL SYSTEMS

1

84477792

BRACKET

Jump Post

1шт.

2

84258928

TERMINAL CONNECTOR

Jump Start Negative

1шт.

3

1964554C1

TERMINAL

Jump Start Positive

1шт.

4

84405137

DECAL

24 Volt Positive

1шт.

5

84405148

DECAL

24 Volt Negative

1шт.

6

86639005

CLAMP,15.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

10

84490514

CABLE,461mm L

Positive to Starter Positive

1шт.

11

84490515

CABLE,888mm L

Negative to Chassis Ground

1шт.
