(55.100.DP[02]) - DEF TANK JUMPER HARNESS

Запчасти Case 521F (55.100.DP[02]) - DEF TANK JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

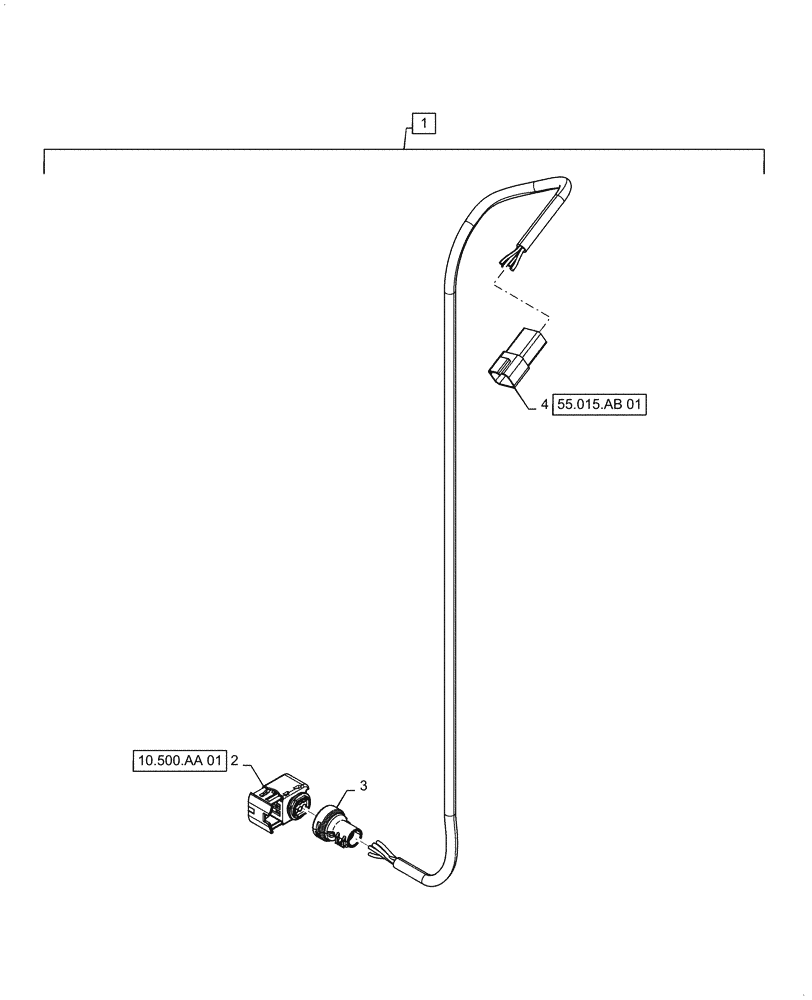

Схема запчастей Case 521F - (55.100.DP[02]) - DEF TANK JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
10.500.aa 01
1
2
3
4
55.015.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47401543

WIRE HARNESS

Def Tank Jumper, Incl 2 - 4

1шт.

2

84149219

ELEC CONNECTOR

6 - Way Receptacle Housing, DEF Quality Sensor

1шт.

2

84152578

TERMINAL

6шт.

3

47374492

COVER

Connector Shell

1шт.

4

225326C1

ELEC CONNECTOR,Male, 4 Pin

Jumper Harness to Main Engine Harness

1шт.

4

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

4шт.

4

87694145

ELEC CONNECTOR

1шт.
