Запчасти Case 521F (55.100.AX[02]) - FRONT FRAME WIRE HARNESS, XT (55) - ELECTRICAL SYSTEMS

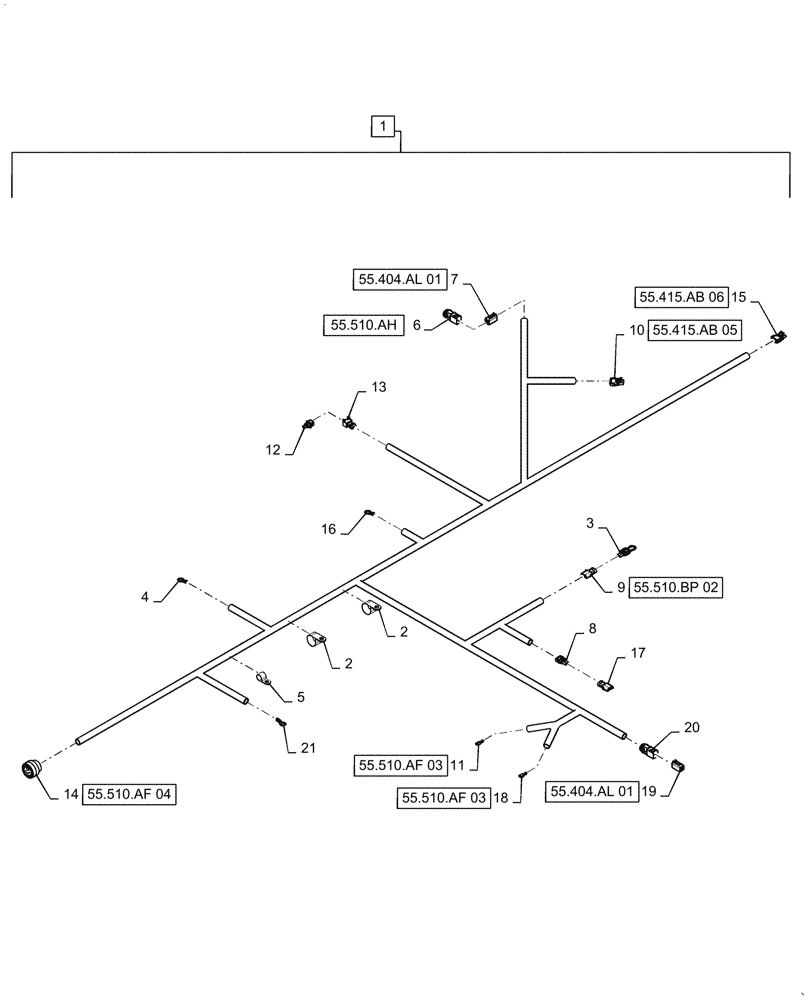

Схема запчастей Case 521F - (55.100.AX[02]) - FRONT FRAME WIRE HARNESS, XT (55) - ELECTRICAL SYSTEMS
55.404.al 01
3
2
19
12
2
18
6
21
20
11
10
5
9
13
15
8
14
4
7
17
16
1
55.510.af 03
55.510.af 03
55.510.af 04
55.510.bp 02
55.415.ab 06
55.415.ab 05
55.510.ah
55.404.al 01

Артикул

Название

Примечание

Количество

1

47434408

WIRE HARNESS

Front Frame, XT, Complete Assembly, Incl 2 - 21

1шт.

2

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

3

8602937

WIRE HARNESS

Jumper, Rollback Pressure Switch

1шт.

4

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Front to Rear Chassis Ground

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

6

84253889

JUNCTION

6 Way Male Receptacle, Outer Shell, Left Lights

1шт.

7

225351C1

ELEC CONNECTOR,Female, 6 Pin

Left Side Lights

1шт.

7

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

5шт.

7

87694150

LOCKING TAB,Wedge Lock

1шт.

8

245482C1

ELEC CONNECTOR,2 Pin

Pin Engage Jumper

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Rollback Pressure Switch

1шт.

9

87692880

CABLE TERMINAL

2шт.

10

245484C1

ELEC CONNECTOR,3 Pin

Height Control / Return to Travel Proximity Switch

1шт.

10

87692880

CABLE TERMINAL

3шт.

11

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Horn Power

1шт.

12

291717A1

ELEC CONNECTOR,Male, 2 Pin

Plug, Ride Control Solenoid Connector

1шт.

12

87691476

WIRE CONNECTOR

2шт.

13

291718A1

ELEC CONNECTOR,Female, 2 Pin

Ride Contol Solenoid

1шт.

13

87679949

TERMINAL CONNECTOR

2шт.

14

319149A1

CONNECTOR, ELEC

18 Cavity Receptacle, Front Frame to Cab

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 2, 3, 5, 6, 9 - 18

15шт.

14

87707258

PLUG

Cavities, 1, 7, 8

3шт.

15

245484C1

ELEC CONNECTOR,3 Pin

Return to Dig Proximity Switch

1шт.

15

87692880

CABLE TERMINAL

3шт.

16

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Front to Rear Chassis Ground

1шт.

17

245483C1

ELEC CONNECTOR,Male, 2 Pin

Weatherpack Cover, Pin Engage Jumper

1шт.

18

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Horn Ground

1шт.

19

225351C1

ELEC CONNECTOR,Female, 6 Pin

Right Side Lights

1шт.

19

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

5шт.

19

87694150

LOCKING TAB,Wedge Lock

1шт.

20

84253889

JUNCTION

6 Way Male Receptacle, Outer Shell, Right Lights

1шт.

21

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Front Chassis and Proximity Switch Ground

1шт.

Выбрано товаров: 32
