Запчасти Case 521F (55.024.AA[02]) - TRANSMISSION WIRE HARNESS (55) - ELECTRICAL SYSTEMS

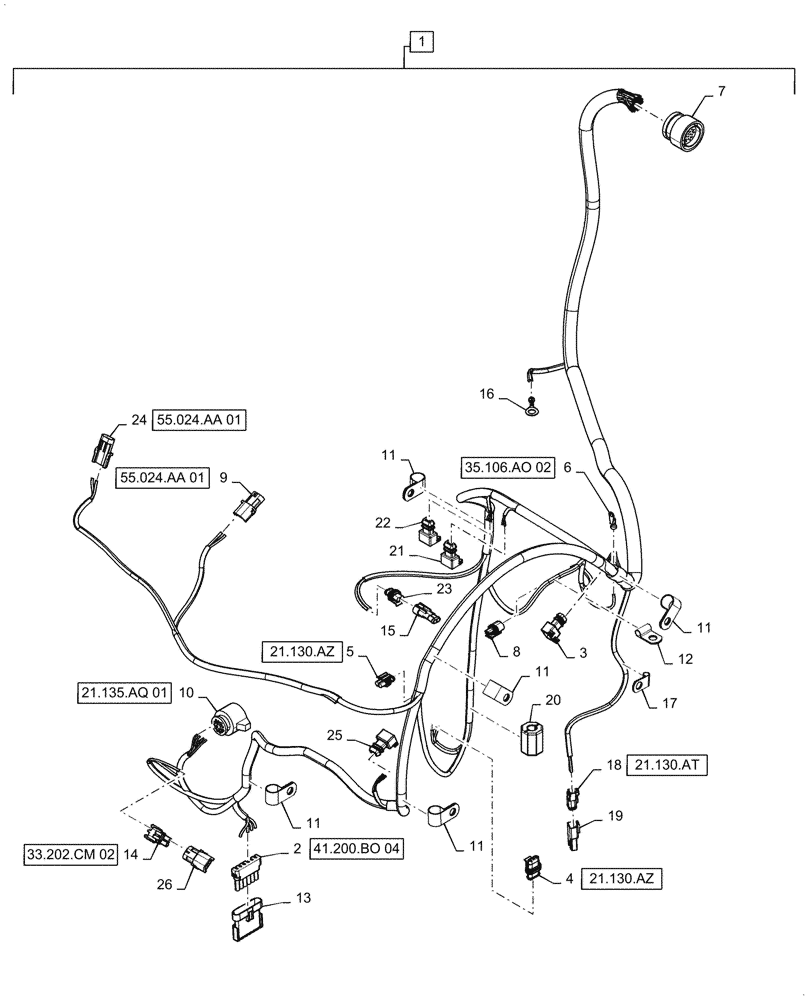

Схема запчастей Case 521F - (55.024.AA[02]) - TRANSMISSION WIRE HARNESS (55) - ELECTRICAL SYSTEMS
21.130.at
6
21
24
23
11
22
12
9
2
14
15
17
11
7
26
18
20
19
8
13
4
25
10
5
11
11
1
3
11
16
35.106.ao 02
21.135.aq 01
55.024.aa 01
55.024.aa 01
41.200.bo 04
21.130.az
21.130.az
33.202.cm 02

Артикул

Название

Примечание

Количество

1

84544854

WIRE HARNESS

Transmission, Complete Assembly, Incl 2 - 26

1шт.

2

245488C1

ELEC CONNECTOR,6 Pin

Secondary Steering Module

1шт.

2

87692882

ELEC. TERMINAL PIN

Cavities, A - C, E

4шт.

2

87686742

PLUG

Cavities, D, F

2шт.

3

291718A1

ELEC CONNECTOR,Female, 2 Pin

Engine Speed Sensor

1шт.

3

87679949

TERMINAL CONNECTOR

2шт.

4

291719A1

CONNECTOR, ELEC

Output Speed Sensor

1шт.

4

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

3шт.

5

371614A1

ELEC CONNECTOR,Female, 2 Pin

Transmission Fluid Filter Maintenance Switch

1шт.

5

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

6

1964703C1

TERMINAL CONNECTOR

Transmission Filter Reset Switch, Ring Terminal

1шт.

7

380838A1

ELEC CONNECTOR,Male, 31 Pin

Transmission to Cab

1шт.

8

194788A1

CONNECTOR, 2-POLE

Hydraulic Oil Temp

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

2шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Redundant Brake Pressure Switch

1шт.

9

87692856

CABLE TERMINAL

2шт.

10

371566A1

CONNECTOR,ELECTRIC

Transmission Control Valve Unit

1шт.

10

47703733

TERMINAL

Cavities, 1 - 9

9шт.

10

47703736

SEAL

Cavities, 10 - 16

7шт.

11

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

Transmission Harness Mounting

5шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

Transmission Harness Mounting

1шт.

13

245489C1

ELEC CONNECTOR,Male, 6 Pin

Secondary Steering, Outer Shell

1шт.

14

245482C1

ELEC CONNECTOR,2 Pin

Brake Declutch Switch

1шт.

14

87692856

CABLE TERMINAL

2шт.

15

371615A1

CONNECTION,ELECTRIC

2-Cavity Receptacle

1шт.

16

1964718C1

TERMINAL CONNECTOR

10mm Ring Terminal, Transmission Ground

1шт.

17

84370849

CLAMP

7.9mm, Insulated

1шт.

18

225316C1

ELEC CONNECTOR,Female, 2 Pin

Diffential Lock Solenoid

1шт.

18

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

19

225315C1

ELEC CONNECTOR,Male, 2 Pin

Diffential Lock Solenoid, Outer

1шт.

20

84543629

ELEC CONNECTOR

Wire Harness Ferrite Material, 31mm OD x 13mm ID x 39.4mm L

1шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

PRB2, Red Break Switch

1шт.

21

87692856

CABLE TERMINAL

2шт.

21

291718A1

ELEC CONNECTOR,Female, 2 Pin

Intermediate Speed Sensor

1шт.

21

87679949

TERMINAL CONNECTOR

2шт.

22

291718A1

ELEC CONNECTOR,Female, 2 Pin

Turbine Speed Sensor

1шт.

22

87679949

TERMINAL CONNECTOR

1шт.

23

371614A1

ELEC CONNECTOR,Female, 2 Pin

Torque Converter Lockup Valve

1шт.

23

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

Redundant Brake Switch

1шт.

24

87692856

CABLE TERMINAL

2шт.

25

291718A1

ELEC CONNECTOR,Female, 2 Pin

Troque Converter Oil Temp Sending Unit

1шт.

25

87679949

TERMINAL CONNECTOR

2шт.

26

245483C1

ELEC CONNECTOR,Male, 2 Pin

Brake Declutch Switch, Outer Shell

1шт.

26

87692856

CABLE TERMINAL

2шт.

Выбрано товаров: 46
