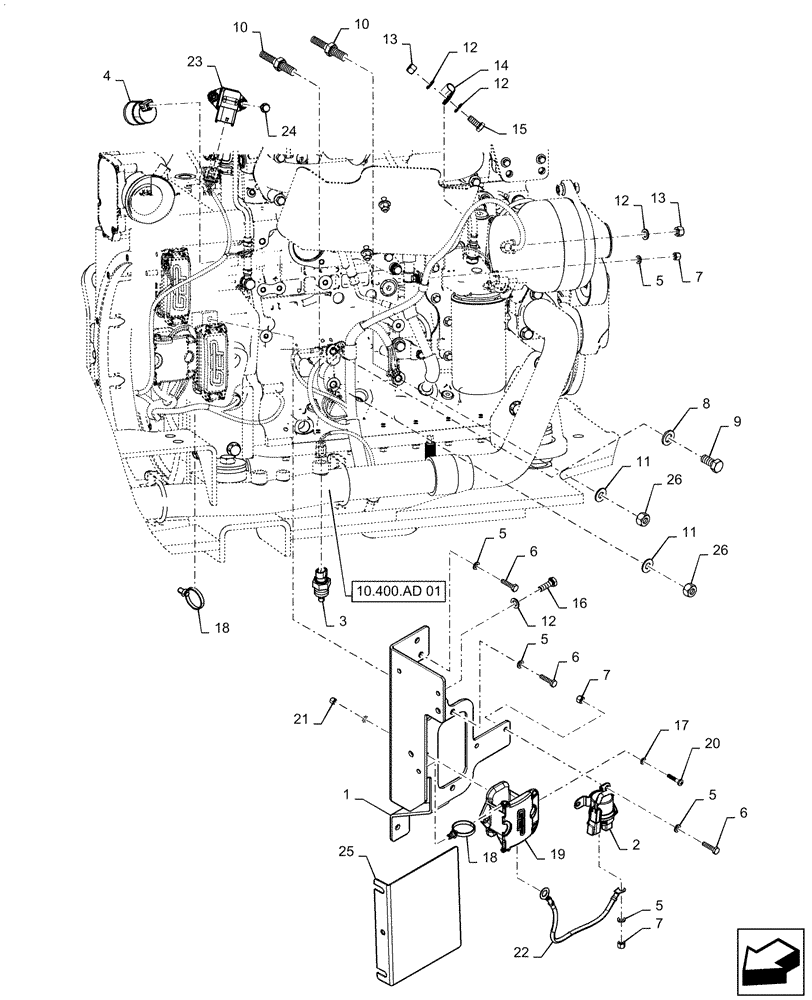

Запчасти Case 521F (55.015.AB[06]) - ENGINE AND REAR FRAME HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47586562

BRACKET

Fuse and Relay Holders

1шт.

2

87351908

SOLENOID SWITCH

Starter

1шт.

3

321446A1

SENSOR

Engine Coolant Temp Sender

1шт.

4

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

6

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

7

832-10406

NUT,M6 x 1, Cl 8

6шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

10

L127553

STUD

Brass, 2" L, M12 x 1.75, .375 -16 UNC

2шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

18

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.

19

47410078

PROTECTOR

Power Feed Stud

1шт.

20

86585710

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

2шт.

21

832-10405

NUT,M5 x .8, Cl 8

2шт.

22

47498377

CABLE

Starter Relay, 369mm L , 10mm Ring Terminal Ends

1шт.

23

87482355

SENSOR

Intake Air Temp and Humidity

1шт.

24

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

25

47689120

BRACKET

Relay Decal

1шт.

26

L127555

NUT,Hex, 3/8" - 16

Brass

1шт.
