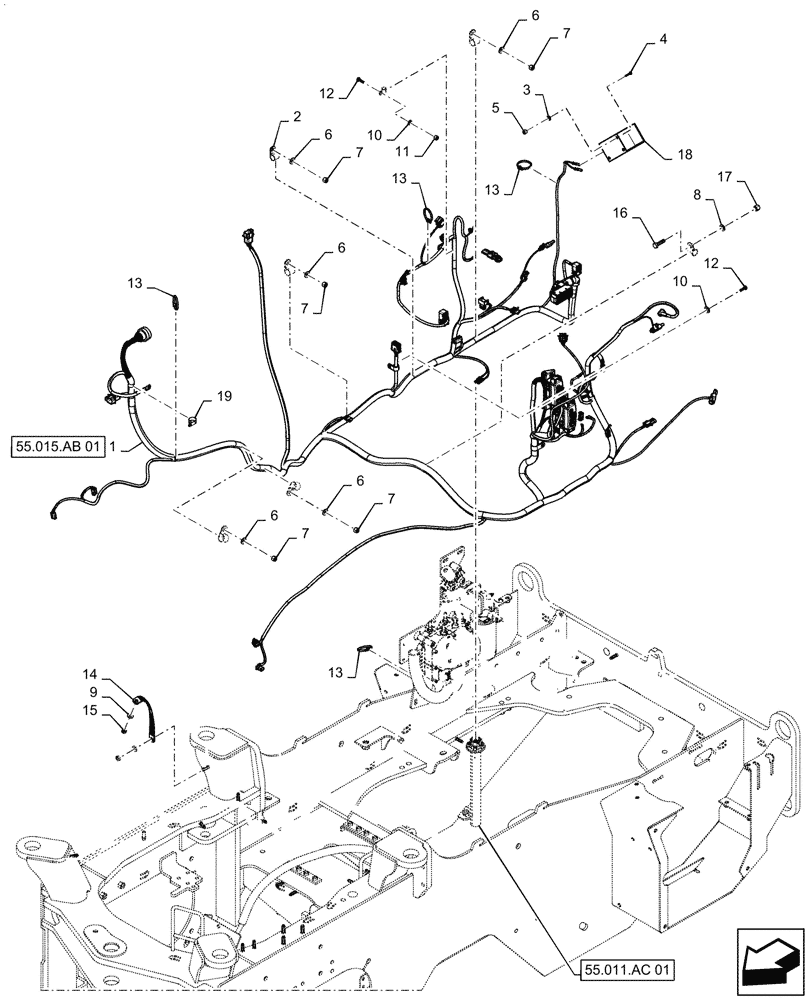

Запчасти Case 521F (55.015.AB[04]) - ENGINE AND REAR FRAME HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47763104

WIRE HARNESS

Complete

1шт.

2

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

4

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

14

L126051

GROUND STRAP

Braided Copper, 203mm L x 25mm W

1шт.

15

253347A1

NUT,Hex, M10 x 1.5

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

18

D121972

ALARM

Back-Up

1шт.

19

515-21254

CLAMP

Insulated, 25.4mm, M6 Bolt

1шт.
