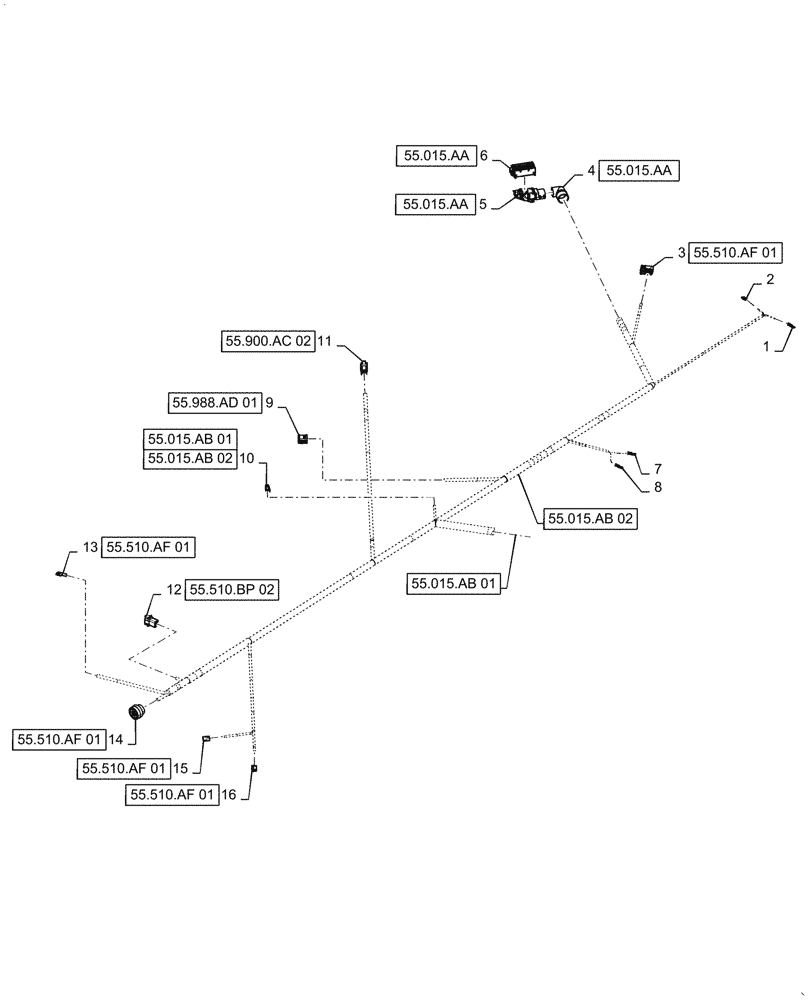

Запчасти Case 521F (55.015.AB[02]) - ENGINE AND REAR FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

1964702C1

TERMINAL CONNECTOR

Ring Terminal, 4mm, Backup Alarm Relay Output

1шт.

2

1964702C1

TERMINAL CONNECTOR

Ring Terminal, 4mm, Backup Alarm Ground

1шт.

3

84152563

ELEC CONNECTOR

7-way Receptacle, Turbo

1шт.

3

84152586

TERMINAL,Tin, 1.50 - 2.50mm

Cavities, 1, 2, 5, 6

4шт.

3

87691478

SEAL

Cavities, 3, 4, 7

3шт.

4

8602414

ELBOW

90 Degree, EDC Connector

1шт.

5

84300198

ELEC CONNECTOR

EDC Connector Cover

1шт.

6

84300197

ELEC CONNECTOR

96-way, EDC17 Engine Controller

1шт.

6

84300195

TERMINAL

96шт.

7

1964703C1

TERMINAL CONNECTOR

Ring Terminal, 5mm, Fuel Sender Ground

1шт.

8

1964703C1

TERMINAL CONNECTOR

Ring Terminal, 5mm, Fuel Sender Signal

1шт.

9

87695592

CONTACT HOUSING,Female, 12 Pole

Engine to SCR Control

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

12шт.

9

87695651

LOCKING TAB,Wedge Lock

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

Heat Load Valve Solenoid

1шт.

11

225320C1

ELEC CONNECTOR

8 Cavity Receptacle, Engine to Hood Harness

1шт.

11

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Cavities 1 - 6, 8

7шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavity 7

1шт.

11

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

12

225411C1

CONNECTOR, ELEC

8 Cavity Receptacle, Engine to Cab Bottom Harness

1шт.

12

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

1шт.

12

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

13

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Cab Battery Positive

1шт.

14

374973A1

CONNECTOR,ELECTRIC

31 Cavity Plug, Engine to Main Cab Harness

1шт.

15

3227856R1

CONNECTION

2 Cavity Receptacle, Rear Washer Pump

1шт.

16

3227856R1

CONNECTION

2 Cavity Receptacle, Front Washer Pump

1шт.
