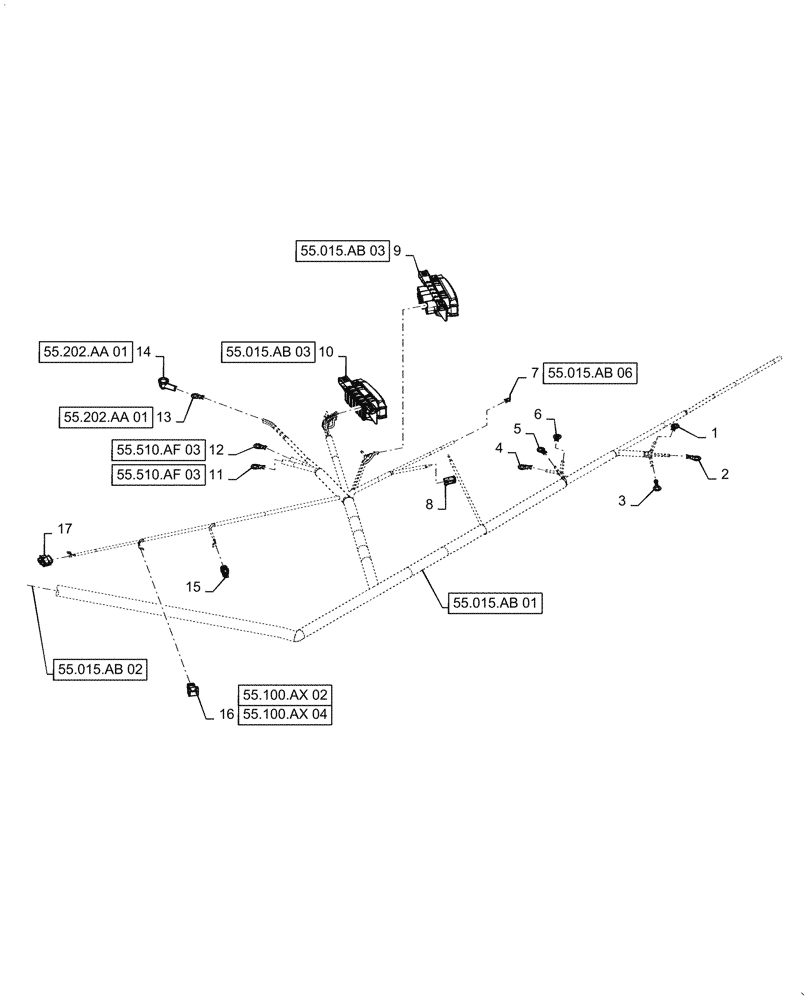

Запчасти Case 521F (55.015.AB[01]) - ENGINE AND REAR FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

2

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

3

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

4

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

5

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

6

1964718C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Sensor Ground

1шт.

7

47426283

TERMINAL

Ring Terminal, 6mm, Starter Solenoid Power

1шт.

8

225316C1

ELEC CONNECTOR,Female, 2 Pin

Starter Relay

1шт.

9

84563565

FUSE HOLDER

Max Relay/ Fuse, 12-way Receptacle Housing

1шт.

10

84380518

FUSE BOX

Fuse Holder, 48-way Receptacle Housing

1шт.

11

1964723C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Battery Positive

1шт.

12

1964723C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Cab Battery Positive

1шт.

13

1964723C1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Battery Positive Disconnect

1шт.

14

399470R1

BOOT

Terminal Cover, Battery Positive

1шт.

15

82012083

WIRE CONNECTOR,Female

2-way, Grid Heater Relay

1шт.

16

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction Switch

1шт.

17

87709809

ELEC CONNECTOR

4-way, Humidty and Ambient Temp Sensor

1шт.
