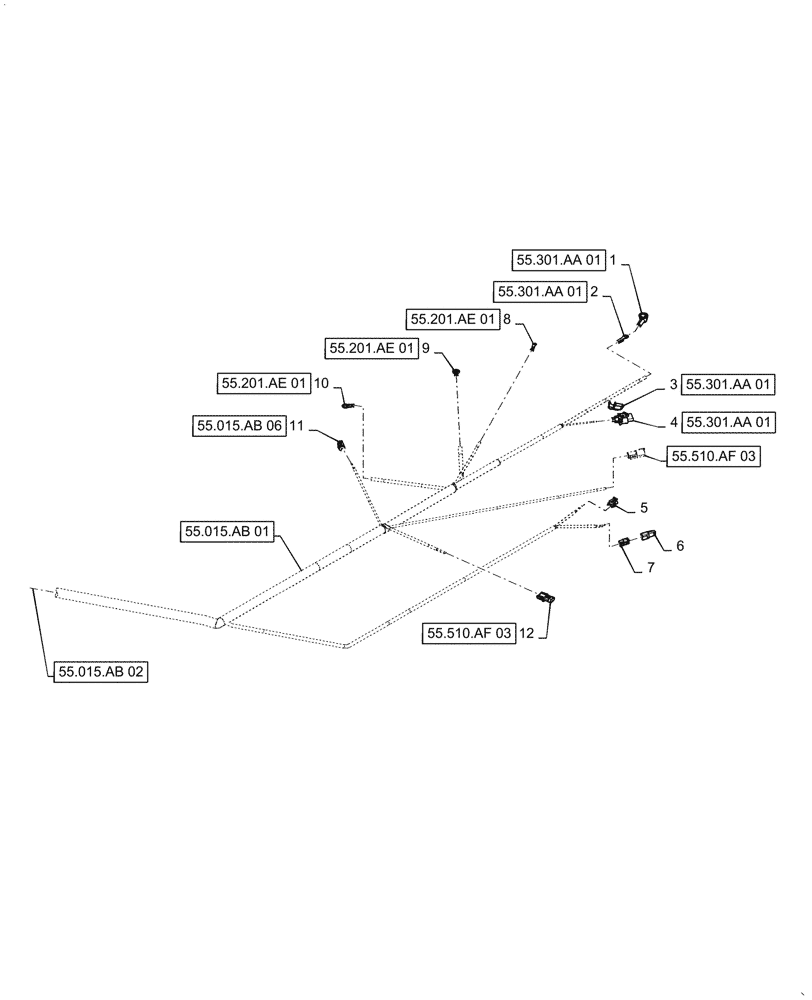

Запчасти Case 521F (55.015.AB[01]) - ENGINE AND REAR FRAME WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

399470R1

BOOT

Terminal Cover, Alternator B+

1шт.

2

225067C1

TERMINAL CONNECTOR

Ring Terminal, 5/16", Alternator B+

1шт.

3

8602488

COVER

Alternator D+ Connector

1шт.

4

8602487

PLUG

5-Way, 90 Degree, Alternator D+

1шт.

5

256340A1

CONNECTOR, ELEC

2 Cavity, Fan PWM Solenoid

1шт.

5

87688852

ELEC. TERMINAL PIN

2шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

Fan Reverse Connector Cap

1шт.

6

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

2шт.

6

86500166

ELEC CONNECTOR

Wedge Lock

1шт.

7

225316C1

ELEC CONNECTOR,Female, 2 Pin

Fan Reverse Solenoid

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

2шт.

8

1964720C1

TERMINAL CONNECTOR

Ring Terminal, 5mm, Starter Solenoid Power

1шт.

9

382255A1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Starter Power (Battery +)

1шт.

10

382255A1

TERMINAL CONNECTOR

Ring Terminal, 10mm, Starter Power (Alternator B+)

1шт.

11

194788A1

CONNECTOR, 2-POLE

2 Cavity Plug, Engine Coolant Temp

1шт.

11

87686198

TERMINAL

2шт.

12

245483C1

ELEC CONNECTOR,Male, 2 Pin

ECU Disconnect, Ignition Power

1шт.

12

87692856

CABLE TERMINAL

2шт.
