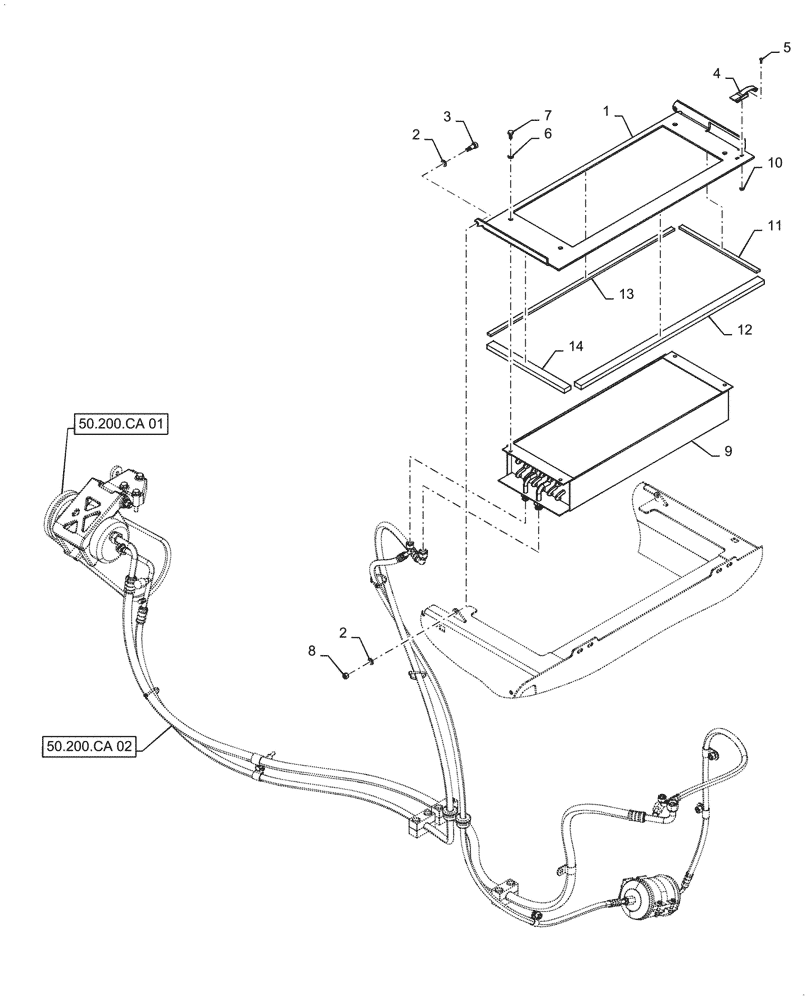

Запчасти Case 521F (50.200.CA[03]) - VAR - 782440 - CONDENSER, ASSY (50) - CAB CLIMATE CONTROL

1

84411602

PLATE

A/C Condenser

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

3

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

4

60-4640T1

LATCH

Condenser Housing

1шт.

5

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

8500878

CONDENSER

Assembly

1шт.

10

225-14108

NUT,#8-32

2шт.

11

87432328

SEAL

Condenser, Latch

1шт.

12

47688490

FOAM

Condenser Seal

1шт.

13

8500133

OIL SEAL

Coolers Seal

1шт.

14

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

1шт.
