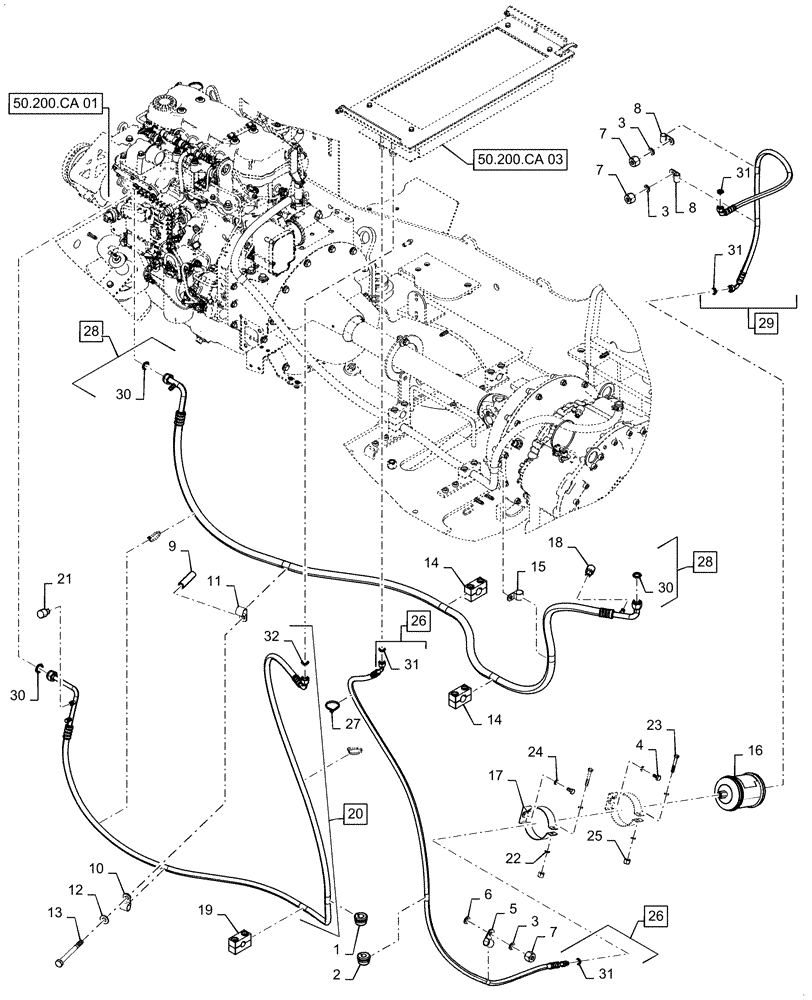

Запчасти Case 521F (50.200.CA[02]) - VAR - 782440 - A/C HOSE, CONDENSER (50) - CAB CLIMATE CONTROL

1

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

2

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

9

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

11

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

13

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

14

367489A1

BLOCK

Tube Mounting

2шт.

15

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

16

47821526

RECEIVER-DRYER

Assembly, A/C System

1шт.

17

433723A1

CLAMP

Receiver-Dryer

2шт.

18

122579A1

SWITCH, A/C LOW PRES

A/C Low Pressure

1шт.

19

379374A1

BLOCK

Tube Mounting

1шт.

20

47563379

HOSE

Incl 30, 32

1шт.

21

232948A1

SWITCH, A/C HIGH PRE

A/C High Pressure

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

25

832-10406

NUT,M6 x 1, Cl 8

2шт.

26

47563378

HOSE

Incl 31

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

28

84191327

A/C HOSE

Incl 30

1шт.

29

84191326

A/C HOSE

Incl 31

1шт.

30

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

31

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

6шт.

32

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.
