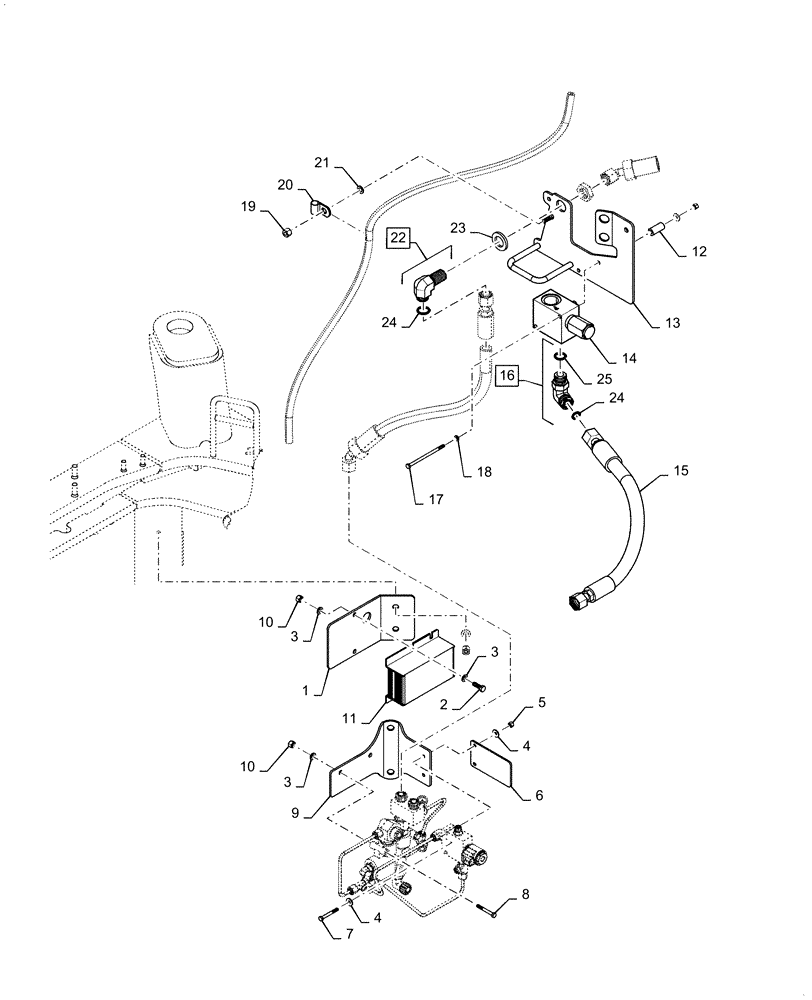

Запчасти Case 521F (41.910.AC) - RELIEF AND PRIORITY VALVE MOUNTING (41) - STEERING

1

87369996

BRACKET

Upper Secondary Steering

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

87403158

SHIELD

Solenoid Valve

1шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

9

87367465

BRACKET

Auxiliary Steering

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

11

8603171

MODULE

Secondary Steering

1шт.

12

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

13

84551691

BRACKET

Steering Return

1шт.

14

87427823

VALVE PRESSURE RELIE

1шт.

15

87476356

HOSE ASSY.

Return Relief to Filter

1шт.

16

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 24, 25

1шт.

17

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

18

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

22

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 24

1шт.

23

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

25

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
