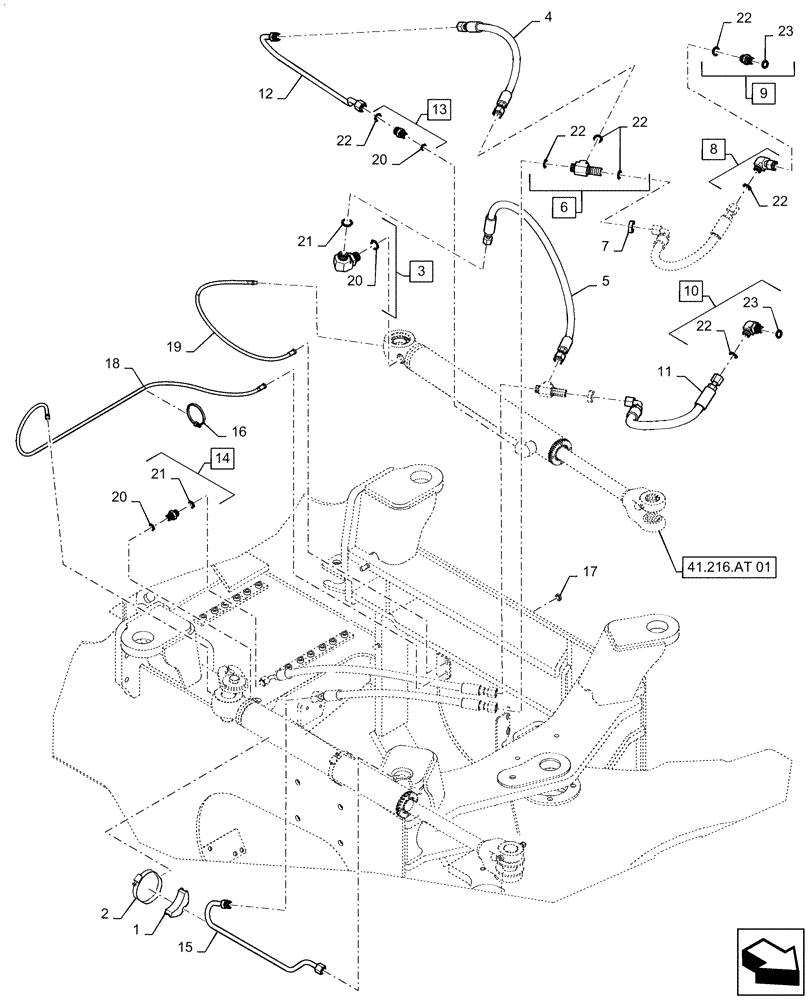

Запчасти Case 521F (41.216.AV[01]) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

8500483

BLOCK

Clamp

4шт.

2

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

4шт.

3

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 20, 21

1шт.

4

87668580

HOSE ASSY.

LH Rod End

1шт.

5

47499270

HYDRAULIC HOSE

LH Base End

1шт.

6

86639080

TEE,13/16"-16 ORFS, Blkd Run

Incl 22

2шт.

7

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

2шт.

8

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 22, Start Serial: ...

1шт.

9

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 22, 23

1шт.

10

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 22, 23

1шт.

11

87385246

HOSE ASSY.

Steering Cylinder

2шт.

12

84407469

RIGID TUBE

LH Cylinder

1шт.

13

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 20, 22

2шт.

14

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 20, 21

1шт.

15

84407465

RIGID TUBE

RH Cylinder

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

17

F53473

LOCK NUT,1/8-27 NPSM

2шт.

18

313682A1

FLEXIBLE HOSE

Steering Grease

1шт.

19

L54693

HOSE

Grease

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

8шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

23

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
