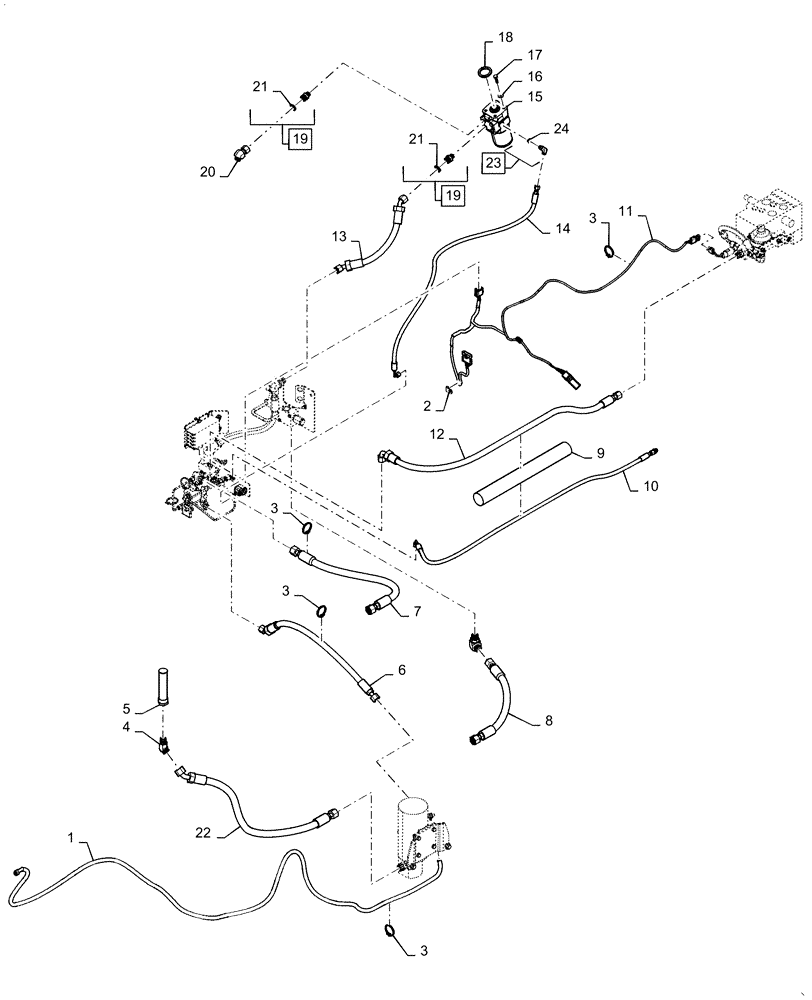

Запчасти Case 521F (41.200.BO[06]) - VAR - 782442, 482913 - AUXILIARY STEERING HOSE INSTALLATION (41) - STEERING

1

87696486

ELECTRIC CABLE

Starter to Auxiliary Steering

1шт.

2

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

24шт.

4

433530A1

ELBOW

45 Deg Includes O-Ring

1шт.

5

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

6

87436048

HOSE ASSY.

Auxiliary Steering Pressure

1шт.

7

87436049

HOSE ASSY.

Excess Flow

1шт.

8

87476356

HOSE ASSY.

Return Relief to Filter

1шт.

9

87559559

HOSE PROTECTION

Sleeve

1шт.

10

437596A1

HOSE ASSY.

Steering Load Sense

1шт.

11

84551537

WIRE HARNESS

Harness Secondary Steering Module

1шт.

12

87706316

HOSE ASSY.

Auxiliary Steering Pressure

1шт.

13

84408702

FLEXIBLE HOSE

Steering Pressure

1шт.

14

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Auxiliary Load Sense

1шт.

15

84168607

HYDRAULIC VALVE

Orbitrol

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

18

76043957

GASKET

1шт.

19

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 21

2шт.

20

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

87662934

HOSE ASSY.

Auxiliary Steering Suction

1шт.

23

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 24

1шт.

24

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
