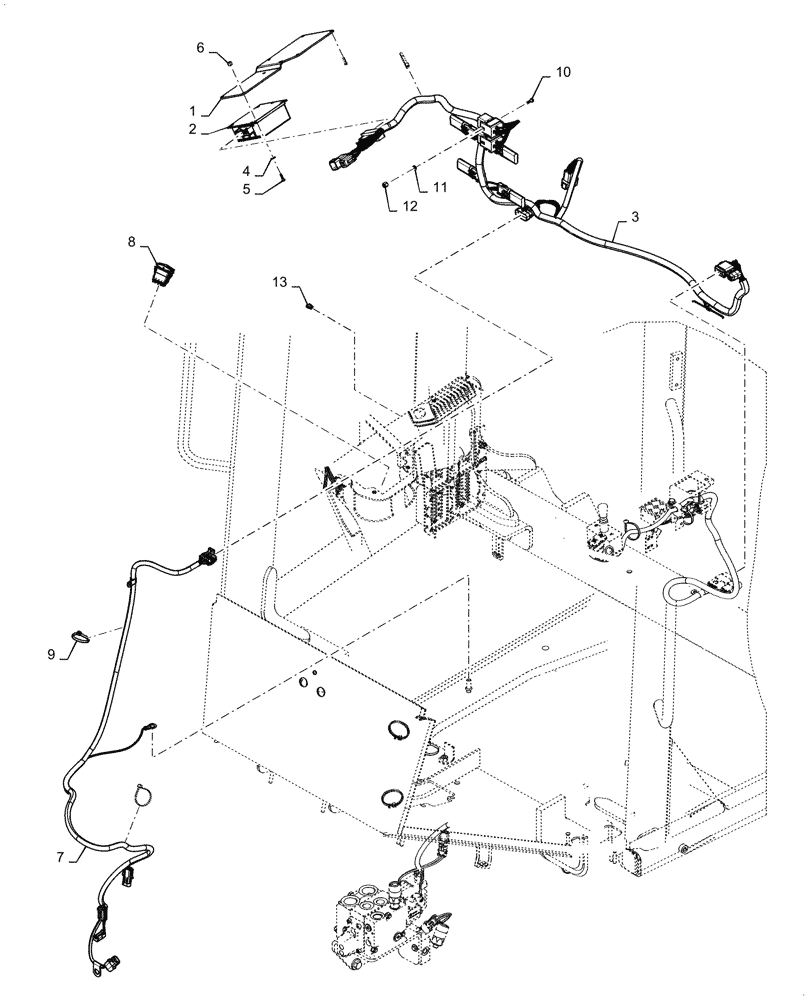

Запчасти Case 521F (41.200.BO[04]) - VAR - 482930, 482913 - JOYSTICK HARNESS CASE (41) - STEERING

1

84185169

BRACKET

Jostick Controller

1шт.

2

84201729

CONTROLLER

Joystick Steering Module

1шт.

3

84152428

WIRE HARNESS

Cab Joystick

1шт.

4

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

7шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

7

84153444

WIRE HARNESS

Joystick Frame Harness

1шт.

8

87486588

SWITCH

Rocker, Activation

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

10

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

2шт.

13

121412A1

FUSE,10A, Mini, Red

1шт.
