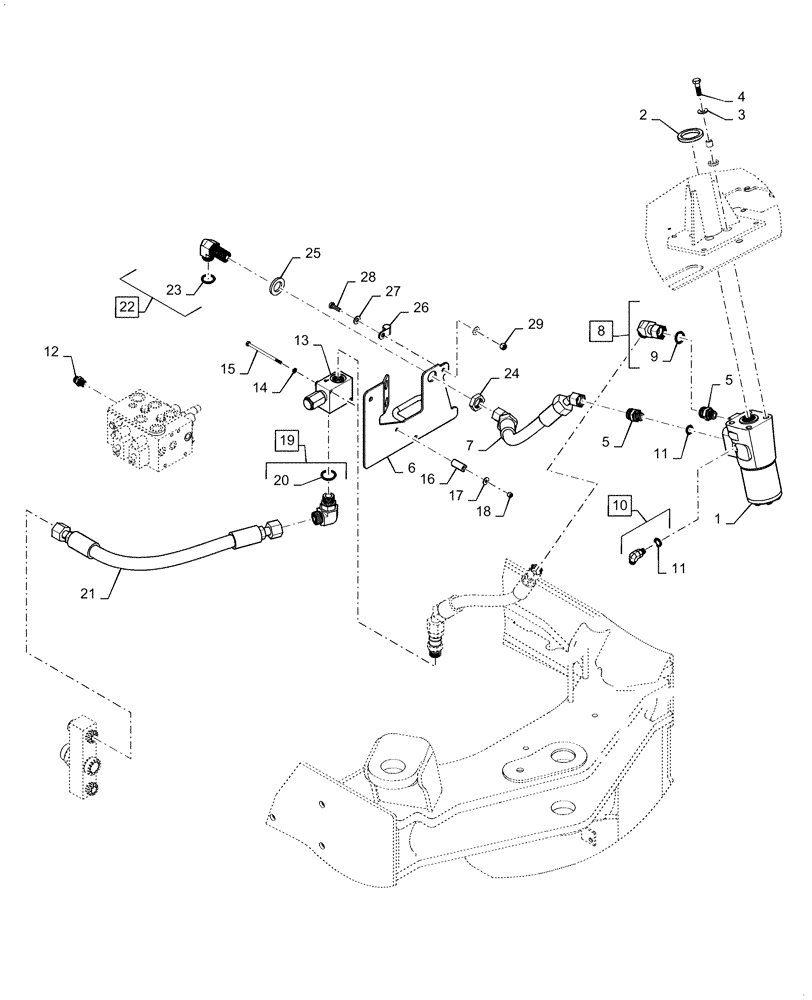

Запчасти Case 521F (41.200.BO[01]) - VAR - 782439, 782440 – STANDARD STEERING, RETURN LINE (41) - STEERING

1

84168607

HYDRAULIC VALVE

Orbitrol

1шт.

2

76043957

GASKET

Steering Orbitrol

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

2шт.

6

84551691

BRACKET

Bracket Steering

1шт.

7

84408702

FLEXIBLE HOSE

Steering Pressure

1шт.

8

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

87427823

VALVE PRESSURE RELIE

1шт.

14

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

15

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

16

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-10406

NUT,M6 x 1, Cl 8

2шт.

19

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 20

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

87476356

HOSE ASSY.

1шт.

22

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 23

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

701-919

BHD LOCK NUT,1" - 14

1шт.

25

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

28

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
