Запчасти Case 521F (41.200.AO[02]) - VAR - 482913 JOYSTICK STEERING WITH AUXILIARY STEERING (41) - STEERING

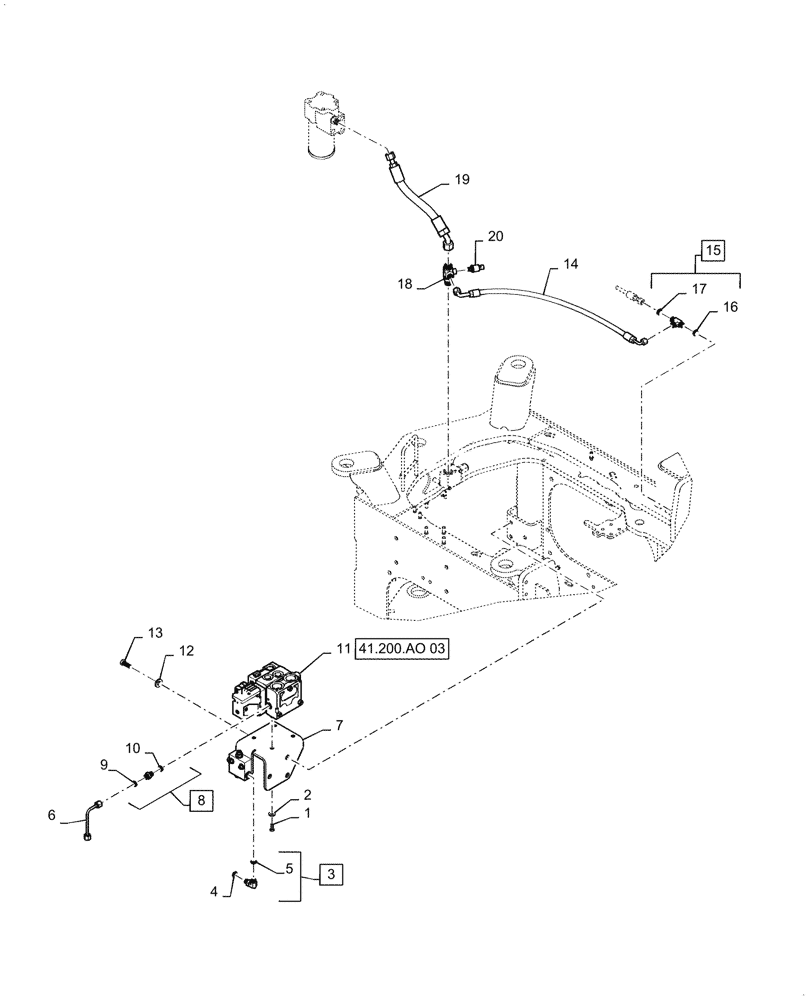

Схема запчастей Case 521F - (41.200.AO[02]) - VAR - 482913 JOYSTICK STEERING WITH AUXILIARY STEERING (41) - STEERING
7
4
14
20
6
12
5
10
9
3
13
19
15
16
17
18
2
11
8
1
41.200.ao 03

Артикул

Название

Примечание

Количество

1

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

2

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 5

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

84143171

HYD TUBE,5.1mm ID x 6.35mm OD x 101mm L

Steering LS

1шт.

7

84143169

BRACKET

Valve Steering

1шт.

8

87661868

HYD CONNECTOR

Incl 9, 10

1шт.

9

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

84242781

STEERING VALVE

Proportional

1шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

14

84216353

HOSE

Bleeding To Tank

1шт.

15

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 16, 17

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

18

84215653

TEE

93mm L x 33.3mm W

1шт.

19

84418113

FLEXIBLE HOSE

Steering Return

1шт.

20

87363483

SENDER UNIT

52.4mm L X 29.5mm W

1шт.

Выбрано товаров: 20
