(41.200.AC[01]) - VAR - 782422 - SECONDARY STEERING NO JOYSTICK

Запчасти Case 521F (41.200.AC[01]) - VAR - 782422 - SECONDARY STEERING NO JOYSTICK (41) - STEERING

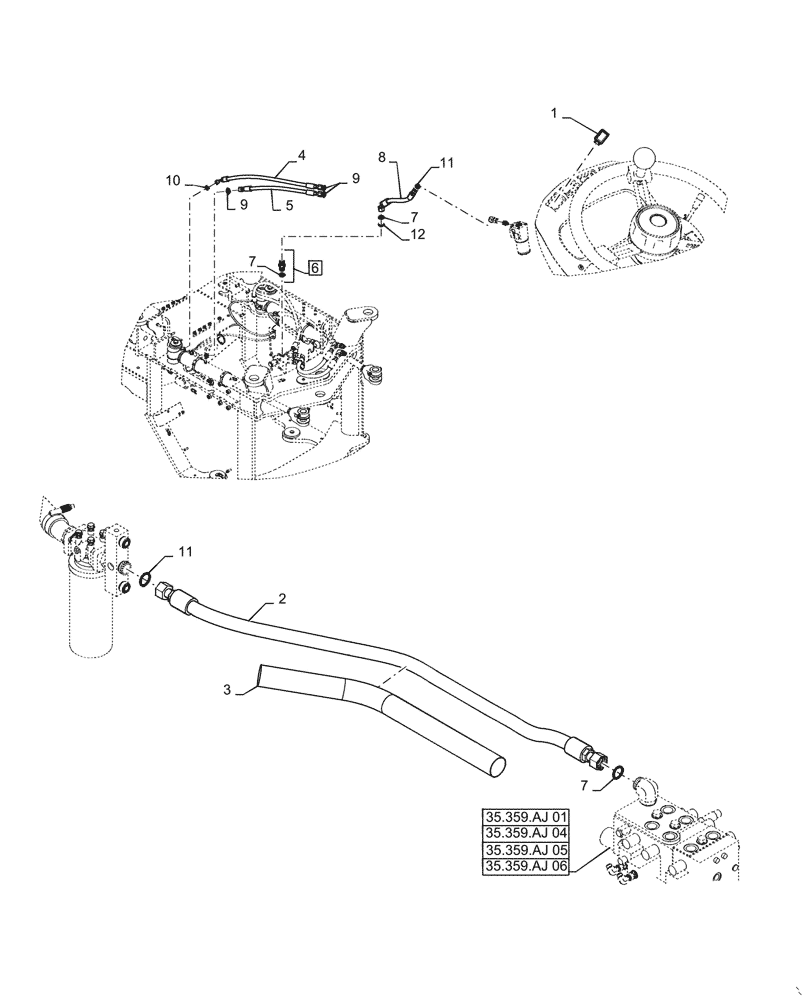

Схема запчастей Case 521F - (41.200.AC[01]) - VAR - 782422 - SECONDARY STEERING NO JOYSTICK (41) - STEERING
35.359.aj 04
35.359.aj 05
1
7
7
3
12
2
9
11
5
11
7
10
8
9
6
35.359.aj 06
4
35.359.aj 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

2

365516A2

HOSE ASSY.

1шт.

3

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

4

87668579

HOSE ASSY.

Steering Right Base

1шт.

5

87668578

HOSE ASSY.

Steering Right Rod

1шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 7

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

84535273

FLEXIBLE HOSE,15.88mm ID x 465mm L, SAE 100R1

Return Orbitrol Valve to Relief

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
